Why Brass Metal Is More Versatile Than You Think
Most people I talk to associate brass metal with antique doorknobs, trumpet bells, or decorative light fixtures. That’s fair—brass is eye-catching and polished. But that’s only scratching the surface.
In my experience working with both product designers and CNC machine shops, brass metal comes up in conversations far more often than you’d expect. From electronics to plumbing, from aerospace to luxury goods, brass has carved out a presence in modern manufacturing that most people overlook.
And when it comes to machining, especially to CNC machining? Brass is a dream material. It cuts cleanly, holds tight tolerances, and behaves predictably—something that matters a lot when you’re managing complex geometries or high-volume production.
This article isn’t just another brass primer. I want to show you how brass metal gets used in places you probably never considered, and why it works so well—especially when machining is involved.
What Is Brass Metal and Why Is It Ideal for Machining?
When I first got into machining, I didn’t give much thought to the material side of things. I was more focused on machine feeds, spindle speeds, and cutting paths. But I quickly learned something that every experienced machinist knows: the material matters just as much as the method. And few materials have impressed me like brass metal has.
So what is brass metal, really? In basic terms, it’s an alloy of copper and zinc. But if you stop there, you’re missing out on the deeper reasons why this metal performs so well—especially when it comes to machining.
The Chemistry Behind Brass Metal
Brass metal is created by combining copper (typically 60-70%) and zinc (30-40%). That sounds simple enough, but small tweaks in the ratio—and the addition of other elements like lead, tin, or aluminum—can completely change how the material behaves.
There are dozens of brass alloys, each designed for specific purposes. Some are optimized for deep drawing. Some are great for marine environments. Others are tailor-made for high-speed turning on CNC lathes.
In machining, we care about three major things:
- How the material cuts
- How it holds a shape
- How much it wears down tools

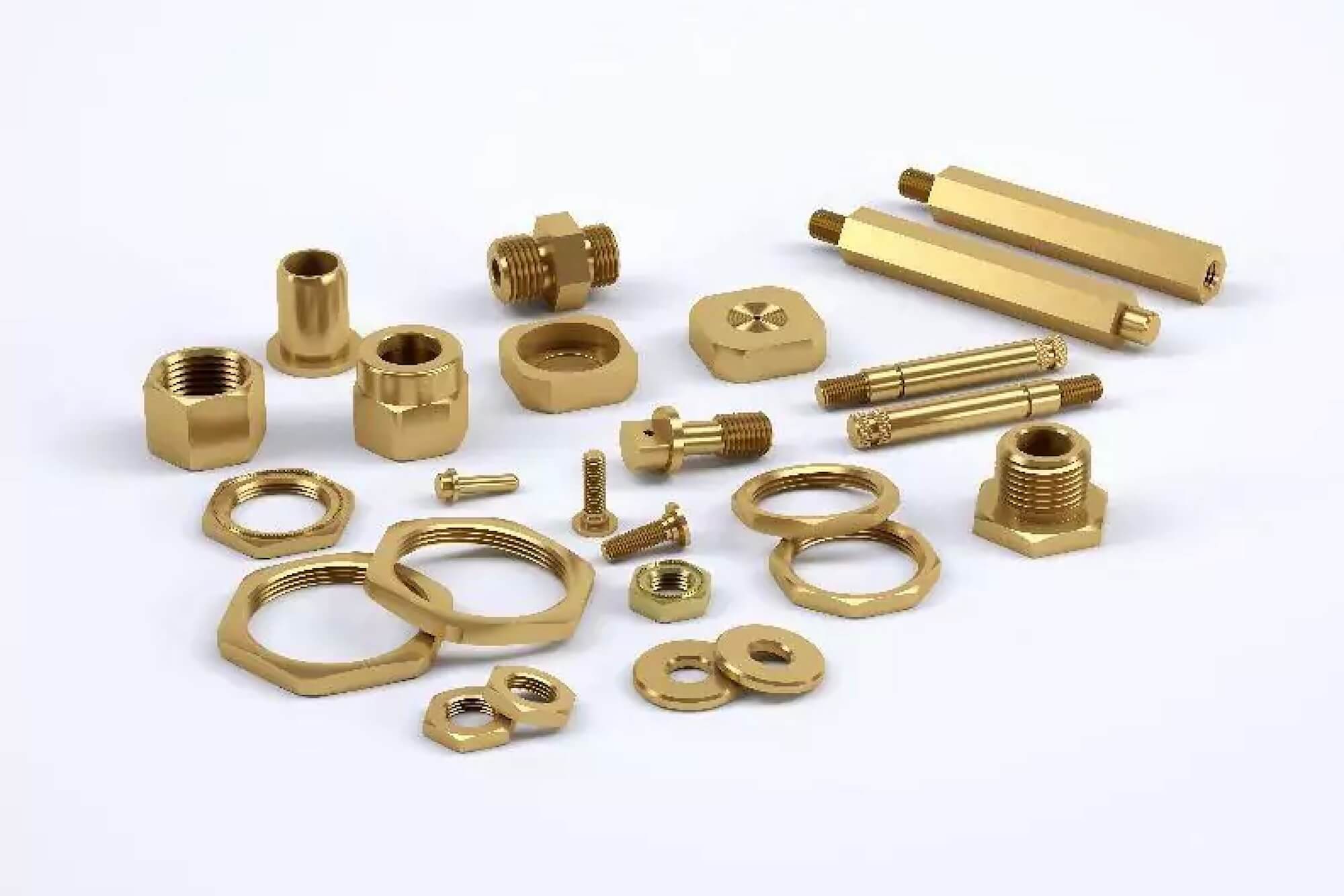

Brass metal, especially in grades like C360 (free-cutting brass), scores high across the board. It’s no surprise that many shops keep brass metal in regular production rotation.
Common Brass Grades and Their Characteristics
I’ll break down some of the common brass grades I’ve worked with over the years and what makes them suitable for different applications.
Table: Overview of Brass Metal Grades
| Alloy (UNS) | Copper (%) | Zinc (%) | Other Elements | Machinability | Use Cases |
|---|---|---|---|---|---|
| C36000 | ~61.5 | ~35.5 | 2.5-3.7% Lead | Excellent (100%) | CNC parts, bushings |
| C26000 | ~70 | ~30 | None | Moderate (30%) | Deep drawing, cartridges |
| C23000 | ~85 | ~15 | Small tin | Fair (40-45%) | Plumbing, decorative parts |
| C69300 | ~73 | ~24 | Arsenic, Silicon | Very good (80-90%) | Lead-free, eco-compliant parts |
| C46400 | ~60 | ~39.25 | Tin | Moderate (45%) | Marine parts |
| C37700 | ~58-61 | ~35-38 | Lead | High (85%) | Forging, plumbing hardware |
Why Machinists Prefer Brass Metal
Over the years, I’ve seen firsthand how brass metal outperforms other materials in terms of machinability. Here’s why:
1. Clean Cutting Behavior
Brass cuts like a dream. It doesn’t gum up. Chips break away easily. If you’re using a sharp carbide tool on C360, you’ll get a bright, mirror-like finish with little effort. This saves you time on post-processing and surface polishing.
2. Tool Longevity
Because of its softness and self-lubricating nature, brass metal is gentle on tools. Compared to stainless steel or titanium, it dramatically reduces tool wear. That means longer intervals between tool changes and less downtime.
3. Minimal Heat Build-Up
Brass doesn’t hold heat like some metals. This reduces thermal expansion during machining, which is key for tight tolerances. Plus, there’s less risk of warping or distorting thin walls or intricate features.
4. Excellent Dimensional Stability
I’ve machined parts for optical assemblies and tight-sealing valves using brass, and the ability to hold micron-level tolerances consistently is impressive. Once set up properly, brass stays true—even in high-speed environments.
5. Surface Finish
One of the most underrated qualities of brass metal is the finish it naturally delivers. If you need cosmetic appeal right off the machine, brass wins. You often don’t even need secondary finishing unless aesthetics are critical.
Machining Brass vs. Other Materials
In my shop, we’ve regularly tested cycle times and tool life across different metals. Brass has consistently been one of the most efficient to work with.
Here’s a quick comparison:
Table: Brass Metal vs. Other Machining Metals
| Material | Machinability Rating | Average Tool Life | Surface Finish | Heat Management | Cost |
|---|---|---|---|---|---|
| Brass Metal (C360) | 100% (baseline) | High | Excellent | Low Heat | Medium |
| Aluminum (6061) | ~65-70% | Moderate | Good | Moderate | Low |
| Stainless Steel (304) | ~45% | Low | Fair | High Heat | High |
| Bronze (C932) | ~40% | Moderate | Fair | Moderate | Medium |
| Plastic (Delrin) | ~80% | High | Good | Low Heat | Low |
Brass may cost a bit more than aluminum, but you make it back in reduced tool wear and cycle time. For certain projects—especially small, high-precision parts—brass metal is a cost-effective option long term.
My Experience with Brass in Prototyping
One of the more memorable experiences I’ve had was working on a custom RF connector for a telecommunications client. The part required high conductivity, corrosion resistance, and incredibly fine threading. After testing stainless and copper, we landed on C360 brass.
Why?
Because it machined perfectly. We were hitting tolerances within ±0.01 mm, threads came out crisp, and no post-processing was needed beyond a quick ultrasonic clean. The project wrapped ahead of schedule, and the client came back for a second order within weeks.
That’s the power of picking the right material. In this case, brass metal wasn’t just a decent choice—it was the perfect one.
Wrapping Up This Chapter
If you’re designing or machining parts and haven’t considered brass metal, you’re likely missing out on performance, cost savings, and aesthetics. It’s one of those rare materials that works just as well for functional parts as it does for luxury components.
Next, I’ll dive into why brass performs so well across so many industries—and how its unique combination of properties unlocks use cases that most people don’t see coming.
Key Material Advantages That Enable Wide Applications
When someone asks me why I use brass metal in so many projects, my answer is simple: it works in places where other metals either fail or cost too much to justify. Over time, I’ve come to appreciate that brass metal isn’t just easy to machine—it’s packed with properties that make it incredibly versatile across industries.
The more you look into it, the more you realize: brass metal is the unsung hero of precision manufacturing, plumbing systems, electronics, and even consumer goods. Let me break down exactly what makes this material such a strong performer—and why so many designers, engineers, and machinists rely on it every day.
High Machinability
This one deserves to come first. Brass metal—especially in free-machining grades like C360—cuts effortlessly. Compared to materials like stainless steel, brass shears cleanly, doesn’t clog cutting tools, and almost never tears or gums up. Chips are short and manageable, which helps keep tool paths clear and productive.
In shops I’ve worked with, we’ve cut cycle times down by 30% simply by switching a component from aluminum or steel to brass metal. Fewer tool changes. Less tool wear. Lower labor costs. That’s real impact for manufacturers.
Excellent Corrosion Resistance
Another major strength of brass metal is its resistance to corrosion—especially in moist, humid, or chemically exposed environments. That’s why it’s been trusted in plumbing for decades. You’ll find brass valves, fittings, and hose connectors in nearly every home, hospital, and industrial facility.
What surprised me, though, was how often brass metal is chosen over stainless steel in lower-pressure water systems. It’s cheaper to machine, and its corrosion resistance is more than adequate. Plus, lead-free brass grades like C693 make it suitable for drinking water applications while complying with modern health regulations.
Solid Electrical Conductivity
While copper is the king of conductivity, brass metal offers the next best thing—at a fraction of the cost and with better machinability. I’ve personally seen brass used in RF connectors, terminal blocks, grounding pins, and circuit board standoffs. The material carries current reliably while also being easy to form and cut.
A lot of electronic connectors are turned from brass metal because it lets you hit tight tolerances without post-machining cleanup. When you plate it with gold or nickel, you get excellent contact performance and long-term durability.
Natural Lubricity and Anti-Galling
Brass has this built-in slickness to it. It doesn’t seize up like aluminum can, and it won’t gall or smear like stainless steel under heavy mechanical contact. That makes it perfect for parts that slide, rotate, or seal.
I’ve used brass metal for bushings, bearings, and valve seats—places where friction needs to be controlled. It’s especially useful when working with dissimilar metals, like steel-on-brass interfaces, where wear reduction is critical.
Visual Appeal and Surface Finish
You can’t talk about brass metal without mentioning its look. It’s naturally attractive, with a warm gold tone that fits both industrial and decorative applications. That’s why it’s used in luxury watch parts, faucets, doorknobs, and custom electronics housings.
And the best part? You don’t need extensive finishing. A sharp tool and the right feed rate can give brass metal a near-mirror surface right off the machine. That saves you time and money on polishing, plating, or coating.
Thermal Stability and Expansion
While not as thermally conductive as copper, brass metal handles heat better than many other common metals used in manufacturing. Its low thermal expansion makes it a solid choice for parts where dimensional accuracy is critical under varying temperatures.
For example, in precision measuring equipment and low-voltage electronics, brass maintains size and form even when the ambient environment changes. That’s a big deal if your tolerances are tight and you don’t want your parts drifting off-spec with the weather.
Acoustic and Vibration Dampening
Here’s something you might not expect: brass metal has great acoustic properties. It’s used in musical instruments—trumpets, horns, saxophones—for a reason. It resonates well and doesn’t crack under vibration.
In mechanical systems, that same quality helps reduce rattling and vibration transmission. In one project I worked on for a medical diagnostics device, switching from aluminum to brass for a small housing cut down noise levels by nearly 50%. That was just from the inherent damping quality of the material.
Recyclability and Sustainability
One of the overlooked strengths of brass metal is how recyclable it is. Unlike many composites or plated metals that lose material value over time, brass can be melted down and reused with minimal performance loss.
In fact, a lot of the brass metal you buy today has already lived a past life as a plumbing fitting, a car part, or even a coin. Many manufacturers I’ve worked with use high-recycled-content brass billets, reducing both costs and carbon footprint.
Regulatory Compliance and Lead-Free Options
As environmental and safety regulations have tightened, lead content in brass has come under scrutiny. Thankfully, the industry has responded with eco-brass and low-lead formulations like C693 and C87850. These materials still machine beautifully and meet standards like:
- RoHS (Restriction of Hazardous Substances)
- NSF 61 (Safe drinking water)
- California AB1953
If you’re designing parts for global distribution, brass metal offers compliant options without sacrificing performance.
Summary: A Material That Overdelivers
From machinability to corrosion resistance, brass metal doesn’t just do one thing well—it does many things very well. That’s why it keeps showing up in industries you wouldn’t expect. I’ve used it in electronic contacts, plumbing manifolds, wear-resistant bushings, and even decorative bezels.
It’s affordable. It’s reliable. It’s sustainable. And most importantly—it works.
Machining Compatibility: How Brass Excels in Modern Manufacturing
Ask any machinist which materials they prefer to work with, and you’ll hear the usual suspects: aluminum, mild steel, maybe even plastics like Delrin. But when precision, speed, and repeatability matter, brass metal quietly sits at the top of the list. In my own work, switching to brass metal has often meant the difference between a job that’s just “doable” and one that runs smooth, fast, and flawless.
What really makes brass metal stand out is how it responds to tools. It doesn’t fight the spindle. It doesn’t chip in unpredictable ways. It makes CNC programming feel predictable—almost too easy. That’s why in high-volume production environments, brass metal is often the first choice for critical precision parts.
Why Brass Is Built for CNC Machining
I’ve machined hundreds of parts from dozens of metals, but brass behaves differently. Here’s what makes it so compatible with today’s manufacturing tools and methods.
1. Consistent Chip Formation
Brass metal shears easily, producing tight, well-formed chips that don’t wrap around the tool or clog the coolant system. When you’re running unattended CNC cycles overnight, chip control is critical. Brass delivers here in a way that makes lights-out manufacturing a real possibility.
2. Reduced Tool Wear
Some metals, especially stainless steel, are tool killers. They dull edges quickly, heat up tools, and require expensive coatings. But brass metal, even in lead-free grades, is naturally lubricious and soft enough to preserve tool edges for much longer. That translates into fewer tool changes, lower maintenance costs, and more uptime.
3. High-Speed Compatibility
With the right setup, you can run brass metal at incredibly high spindle speeds. I’ve regularly hit 10,000+ RPM on Swiss-type lathes with zero tool chatter and beautiful finish. It responds well to both carbide and HSS tooling, and doesn’t require fancy coatings to perform well.
Common Machining Operations with Brass
Let’s break down some of the key machining operations where brass metal shines, based on my shop experience and industry standards.
Turning
Brass cuts cleanly on lathes and requires minimal finishing. When using carbide inserts with a sharp cutting edge and proper back rake, you can maintain tight tolerances and excellent surface finishes.

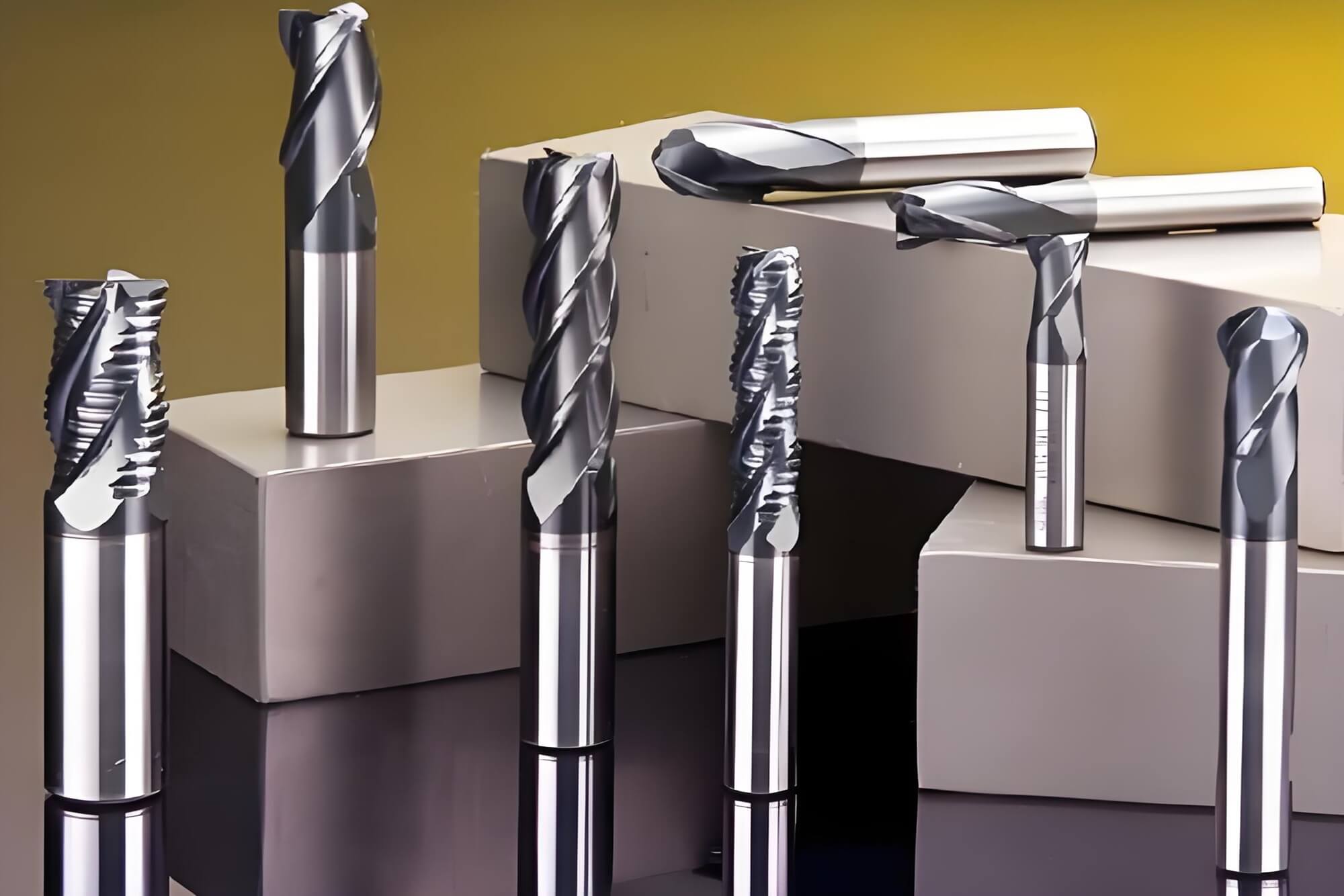

Milling
End milling brass metal is as straightforward as it gets. Low cutting forces mean less deflection, and with sharp flutes and proper chip evacuation, parts come off the machine looking like they’ve already been polished.
Drilling
Brass drills very easily, but you have to use the right technique. Standard twist drills work fine, but split-point or parabolic-flute drills perform better, especially on deeper holes. Use steady pressure—too light and the drill might skate.
Tapping
Brass threads beautifully—no galling or tearing. Both cut taps and form taps work, but I’ve had better luck with form taps in lead-free alloys. Add a touch of oil and you’re good to go.
Table: Recommended Machining Parameters for Brass Metal
| Operation | Cutting Speed (SFM) | Feed Rate (IPR) | Depth of Cut | Tool Type | Notes |
|---|---|---|---|---|---|
| Turning | 400–900 | 0.005–0.015 | Light–Medium | Carbide, sharp edge | No chip breaker needed |
| Milling | 600–1200 | 0.002–0.008 | Light passes | 2 or 3-flute end mill | Uncoated tools preferred |
| Drilling | 300–500 | 0.003–0.010 | Step down if deep | Split-point drill | Avoid pecking too much |
| Reaming | 200–400 | 0.002–0.006 | Light pass | Straight-flute reamer | Use minimal lubricant |
| Tapping | – | – | – | Spiral-point/form tap | Form taps for lead-free brass |
These are just starting points, of course. Always test and adjust based on your machine, rigidity, and material condition. But if you’re used to babysitting your stainless jobs, working with brass metal is like taking a deep breath.
Compatibility with Machines and Tooling
One of the reasons brass metal is so popular in production environments is that it doesn’t require special tools. You don’t need high-end coated inserts, rigid tapping heads, or fancy live tooling setups. In fact, many legacy machines can run brass efficiently with minimal upgrades.
In the past, I’ve run precision brass components on:
- Swiss-type lathes (Citizen, Star, Tsugami)
- Vertical mills (Haas, Brother, Fanuc)
- CNC screw machines (Tornos, Davenport)
- Manual lathes and Bridgeports
In every case, setup times were shorter. Surface finishes were better. And output rates were faster.
Finishing and Post-Processing Advantages
Brass has another machining advantage that’s easy to overlook: it doesn’t require extensive finishing. Parts come off the machine looking good. A light deburr or ultrasonic clean is often all it takes before packaging.
And if you do need post-processing, brass metal takes well to:
- Polishing
- Electroless nickel plating
- Chrome plating
- Anodizing (yes, some hybrid brass alloys)
- Brushed or antiqued finishes
This makes it ideal for applications where both function and form matter.
My Take on Brass in Production Runs
We once ran a 5,000-part job for a client in the lighting industry—brass end caps for a premium wall fixture. Switching from plated steel to brass metal cut our cycle time by 20%, improved cosmetic quality, and reduced the polishing step to almost nothing.
That wasn’t an anomaly. In my experience, once you optimize for brass, your setup becomes more reliable. Your output becomes more predictable. And your shop becomes more profitable.
Wrapping Up: A CNC-Ready Material You Can Trust
When I think about brass metal, I don’t think of it as a legacy material or just something decorative. I see it as one of the most efficient metals available for modern machining.
It cuts fast. It holds tolerances. It looks great. And it plays nicely with machines and tooling across the board.
For any shop owner, designer, or engineer looking to build a process that runs smoother and delivers better parts—brass metal is a material you absolutely want in your toolkit.
Use Cases You Didn’t Know: Where Brass Metal Truly Shines
When most people think of brass metal, they picture doorknobs, musical instruments, or maybe antique plumbing fittings. And they’re not wrong—brass has been a part of daily life for centuries. But what most folks don’t realize is how often brass metal shows up in places you’d never expect, especially in modern precision applications.
Over the years, I’ve worked with industries from aerospace to medical, and time and again, brass metal has proven itself to be the ideal material for small, precise, corrosion-resistant components. It’s more than just an attractive metal—it’s a functional one that delivers in real-world use cases.
In this chapter, I’ll walk you through specific industries where brass metal is used, why it works so well, and what types of machined parts are commonly made from it.
Electronics and Electrical Components
One of the biggest surprises for people new to this field is just how often brass metal is used in electronics. I’ve machined thousands of electrical parts from brass, especially in telecom and industrial control systems.
Why brass?
- Good electrical conductivity
- Easy to machine to tight tolerances
- Holds threads well
- Accepts plating like gold or nickel easily
Typical brass components in electronics:
- Terminal pins
- Grounding blocks
- RF connectors
- Battery contacts
- Sockets and housings
I once worked on a custom antenna assembly for a GPS tracker. The customer initially spec’d aluminum, but we switched to C360 brass for easier threading and better plating adhesion. The result? Faster turnaround, fewer machining errors, and better signal performance.
Plumbing and Sanitary Systems
If you’ve ever turned on a faucet, chances are you’ve handled brass metal. It’s the go-to material for plumbing systems—and not just because it resists corrosion.
Why brass?
- Resistant to rust and mineral buildup
- Doesn’t contaminate water (lead-free grades available)
- Easy to seal with threads or compression fittings
- Maintains dimensional integrity over time
Common brass plumbing parts:
- Faucet cartridges
- Hose bibbs
- Valves and valve stems
- Water meter fittings
- Shower heads and arms
Many of the parts I’ve helped produce are high-volume valve components. Brass machines cleanly, doesn’t deform under pressure, and threads beautifully. I’ve seen hundreds of thousands of identical pieces pass QC with almost no variance in tolerances.
Instrumentation and Precision Devices
Precision matters in this field. And that’s where brass metal shines. Its dimensional stability, machinability, and resistance to corrosion make it a favorite for scientific and industrial instruments.
Applications include:
- Pressure gauge housings
- Flow control valves
- Calibration fittings
- Sensor bodies
- Thermocouple hardware
These parts are usually small, complex, and high-precision. I’ve worked with OEMs that needed brass parts with tolerances within ±0.005 mm—and we hit those targets with regularity.
Automotive and Aerospace
You wouldn’t think of brass metal when you imagine jet engines or car frames—but zoom in, and you’ll find brass in important places.
In cars and aircraft, brass is used for:
- Fuel system fittings
- Brake system connectors
- Bushings and bearings
- HVAC system valves
- Electrical sensor housings
Why? Because brass metal resists vibration, seals well, and won’t spark—critical in fuel or brake systems.
I remember machining fuel injector seats for a small jet engine test rig. We went with brass over stainless because it allowed for more precise sealing and was easier to clean and inspect.
Luxury Goods and High-End Hardware
Brass isn’t just functional—it’s beautiful. It adds a premium feel to any product. That’s why it’s widely used in:
- Watches and timepiece components
- Pen barrels and fountain pen nibs
- Custom mechanical keyboards
- High-end audio knobs and housings
- Decorative locks and hardware
In one project, we machined a batch of solid brass headphone housings for a boutique audio company. The material choice wasn’t just aesthetic. Brass dampened unwanted vibration better than aluminum, improving sound clarity.
Musical Instruments
This is where the word “brass” originates for many people—trumpets, trombones, French horns. And for good reason.
Why brass is ideal for musical instruments:
- Excellent resonance
- Doesn’t corrode from moisture or saliva
- Machines well for precision tuning components
Even in this analog world, machining plays a role. Brass mouthpieces, valve parts, and tuning slides are often CNC machined for consistency and performance.
Industrial Automation and Robotics
Modern automation needs parts that are wear-resistant, anti-static, and precise. Brass metal fits all three.
Common brass parts in automation:
- Pneumatic fittings
- Motion control bushings
- Feedback sensor mounts
- Linear guide spacers
- Cable connectors
Brass’s low-friction properties make it ideal for moving parts. And in robotic arms where electrical grounding is critical, brass provides conductivity and structure at once.
Table: Brass Metal Use Cases Across Industries
| Industry | Common Brass Parts | Key Benefits |
|---|---|---|
| Electronics | Connectors, pins, contacts | Conductivity, tight tolerances |
| Plumbing | Valves, faucets, fittings | Corrosion resistance, durability |
| Instrumentation | Sensor housings, valve blocks | Dimensional stability |
| Automotive/Aerospace | Fuel fittings, bushings, HVAC parts | Anti-vibration, sealing |
| Luxury Products | Watch parts, pens, audio hardware | Aesthetic, acoustic quality |
| Music | Mouthpieces, valves, tuning slides | Resonance, corrosion resistance |
| Automation/Robotics | Pneumatic parts, mounts, sensors | Anti-friction, grounding ability |
My Experience Across These Use Cases
Personally, I’ve worked across four of these industries—electronics, plumbing, luxury goods, and automation. And in each case, switching to brass metal improved production outcomes. Tighter tolerances. Fewer reworks. Better finishes. Even happier clients.
I once helped a luxury pen manufacturer replace stainless with brass for their pen barrels. Why? Brass turned faster, polished easier, and gave the pen that warm “weight in hand” that users loved. They ended up saving 30% on production costs and got glowing reviews from customers.
Design and Machining Tips for Each Application Type
If you’re planning to use brass metal in your next project—whether it’s an electronics part, plumbing fitting, or luxury product—there are some design and machining tips worth knowing. I’ve seen brilliant ideas get bogged down during production because certain brass-specific behaviors were overlooked. And I’ve also watched projects succeed spectacularly when the material’s strengths were used properly from the start.
So in this chapter, I’ll share what’s worked well for me and for the engineers I’ve worked with. These tips are grouped by application type, so you can apply them directly based on your use case.
1. Electronics and Electrical Parts
When you’re machining connectors, terminal blocks, or contact pins from brass metal, the stakes are high. These parts usually involve tight tolerances, precise geometry, and sometimes delicate secondary operations like plating.
Design Tips:
- Keep wall thickness consistent: This helps maintain uniform conductivity and avoids deformation during crimping or assembly.
- Plan for plating: Leave allowances for surface treatments like nickel or gold. Even a few microns can impact fit in connectors.
- Use rounded corners: Sharp edges can create stress points, especially in press-fit designs.
- Drill and ream contact holes: If you need precision holes for pins or press-fit parts, finish with a reamer to get exact tolerances.
Machining Tips:
- Use form tools to shape multiple contact features in one pass.
- Run at high spindle speeds to maximize surface smoothness, especially on contact faces.
- Use fine-pitch threading tools for parts with terminal screw holes—brass metal threads cleanly, but oversize threads can strip easily.
2. Plumbing and Fluid Handling Components
Plumbing parts need to be tough, corrosion-resistant, and pressure-sealed. The best designs balance functional geometry with manufacturing ease.
Design Tips:
- Use standard thread forms: Stick to NPT, BSP, or G-thread specs. Custom threads may require special taps or gauges.
- Add lead-in chamfers: Threads seal better when they can self-align.
- Avoid sharp internal corners: These create stress concentrators and are hard to machine cleanly.
Machining Tips:
- Use carbide tools for thread milling—especially on larger valve bodies.
- Deburr aggressively: Plumbing parts often rely on hand assembly or sealing. Even a small burr can ruin a connection.
- For parts in lead-free brass, slow your feed slightly and use sharp, fresh inserts to avoid tearing.
3. Instrumentation and Precision Devices
Precision hardware has little tolerance for error. I’ve worked on brass parts that go into pressure sensors, calibration tools, and chemical flow meters. These require not only tight tolerances but dimensional stability over time.
Design Tips:
- Design with inspection in mind: Add flat reference faces or probe points to make quality control easier.
- Avoid deep thin-walled pockets: Even though brass metal is stable, vibrations and heat during machining can cause deflection.
- Consider O-ring grooves with rounded bottom edges—flat-bottom grooves are harder to machine and seal less reliably.
Machining Tips:
- Keep cutting tools razor sharp—even tiny tool wear can shift parts out of spec.
- Consider CNC probing between operations to verify dimensions before proceeding.
- Use form reamers for repeatable precision bores.
4. Automotive and Aerospace Fittings
I’ve machined small bushings, HVAC connectors, and fuel system fittings from brass metal for both automotive and aerospace clients. These parts need to perform under stress, vibration, and temperature swings.
Design Tips:
- Include wrench flats or grip features: These help during field installation.
- Account for thermal expansion: Brass expands with heat—build clearance or seals that allow for this.
- Avoid unsupported overhangs or thin stems—brass is strong, but not immune to vibration fatigue.
Machining Tips:
- Add a chamfer on press-fit features—this helps parts seat cleanly without galling.
- Run dry or with minimal mist coolant if surface oxidation or staining is a concern.
- Use rigid toolholding—brass machines easily, but any chatter will immediately affect finish quality.
5. Decorative and Consumer-Facing Products
This is where brass metal truly shines—literally. Watches, handles, pens, knobs, and bezels all benefit from the material’s natural luster and warmth.
Design Tips:
- Choose symmetrical designs: They reflect light evenly and look more premium when polished.
- Avoid deep, narrow pockets—these are hard to polish and may trap finishing compounds.
- Use fillets generously—they ease machining and enhance the visual appeal.
Machining Tips:
- Use freshly ground cutters for the final pass to maximize finish quality.
- Polish directionally if surface brushing is required (usually lengthwise).
- For mirror finishes, you may only need a 0.005″ finishing pass and light buffing afterward—brass finishes up beautifully.
General Tips for All Applications
There are a few universal things I’ve learned about machining brass metal, no matter what it’s being used for:
- Avoid over-tightening screws or threads: Brass is strong, but its threads can strip if over-torqued.
- Always clean parts post-machining: Brass chips and swarf can scratch softer finished areas.
- Store finished brass away from humidity: It can oxidize if left exposed for too long. A quick coat of oil or lacquer helps.
Table: Brass Design and Machining Summary by Application
| Application Area | Critical Design Feature | Best Machining Tip | Common Pitfall to Avoid |
|---|---|---|---|
| Electronics | Consistent wall thickness | Use split-point drills for pin holes | Over-tight threads stripping |
| Plumbing | Thread sealing and fit | Aggressive deburring after threading | Burrs blocking sealing surfaces |
| Instrumentation | High dimensional accuracy | CNC probing between ops | Thin walls warping |
| Automotive/Aerospace | Anti-vibration grip features | Chamfer press-fit ends | Fatigue cracks in thin stems |
| Decorative/Luxury | Smooth geometry, visible faces | Light finishing passes with sharp tools | Uneven surface brush pattern |
From Experience: Avoiding Mistakes Early
I once helped a team build a precision gas meter with a brass valve core. On the first production run, the internal threads kept failing inspection—too loose. Turned out the plating thickness hadn’t been factored into the thread size. We adjusted the pre-plate dimensions and the problem disappeared. Simple fix, but costly if left too late.
That’s why understanding brass metal—not just how it machines, but how it behaves after machining—is so critical for anyone working with it.
Wrapping Up: Design Smarter, Machine Cleaner with Brass
Using brass metal successfully comes down to respecting its strengths. It’s easy to machine, but still requires thoughtful geometry. It’s corrosion-resistant, but only if cleaned and handled right. And it’s beautiful—but only if you finish it properly.
No matter what you’re building, understanding how to design and machine brass metal can make your parts look better, work better, and cost less to produce.
Choosing the Right Brass Grade for Each Use Case
Not all brass metal is created equal. That was one of the first things I learned the hard way. I once specced a generic brass rod for a part that needed tight tolerances and ended up with headaches—rough finish, premature tool wear, and inconsistent dimensions. Turned out I had picked a low-grade alloy meant for stamping, not machining.
Since then, I’ve gotten a lot smarter about choosing the right brass metal grade for each job. And if you’re working with brass in design, machining, or procurement, getting this part right makes all the difference.
In this section, I’ll break down the most common brass grades used in machining, what each one is best for, and how to match the grade to your application—whether it’s plumbing, electronics, luxury goods, or precision instrumentation.
The Big Idea: Composition = Performance
Brass metal is an alloy of copper and zinc. But when you vary that ratio—or add elements like lead, tin, or silicon—you dramatically change how the metal performs.
For example:
- Add lead → easier to machine
- Add tin → better corrosion resistance
- Add aluminum or silicon → strength and durability for structural parts
So when someone asks, “Is this brass machinable?” I always respond: “Which brass?”
Common Brass Grades at a Glance
Let’s start with a comparison chart of widely used brass alloys.
Table: Common Brass Metal Grades and Use Case Matchups
| UNS Number | Commercial Name | Key Features | Machinability (1–100) | Best Use Cases |
|---|---|---|---|---|
| C36000 | Free-Cutting Brass | High lead, extremely machinable | 100 | Screws, connectors, CNC precision parts |
| C26000 | Cartridge Brass | Good strength, poor machinability | 30 | Deep drawing, stamping, shell casings |
| C23000 | Red Brass | High copper content, corrosion-safe | 40–50 | Plumbing, decorative parts |
| C46400 | Naval Brass | Tin added, marine corrosion resistant | 45–55 | Seawater valves, ship fittings |
| C69300 | ECO Brass (lead-free) | RoHS/NSF compliant, strong, safe | 80–90 | Drinking water parts, sensor housings |
| C37700 | Forging Brass | Hot-forge ready, tough, leaded | 85–90 | Valves, fittings, forged connectors |
How to Choose the Right Brass Metal
Here’s how I typically guide clients and teams through choosing the best brass grade for a project.
1. If Your Priority Is Machinability → Use C36000 (Free-Cutting Brass)
This is the gold standard of machinable brass. It has about 2.5%–3.7% lead, which acts like a lubricant during cutting. I use this grade for almost all CNC lathe and mill work unless there’s a regulatory reason to avoid lead.
Ideal for:
- Electrical connectors
- Valve components
- Threaded fasteners
- High-volume precision turning
My Tip:
If speed, surface finish, and tool life matter—C360 is unbeatable.
2. If You Need Deep Drawing or Forming → Use C26000 (Cartridge Brass)
This is a low-lead alloy with high zinc content. It’s not great for machining, but it’s excellent for deep-drawing operations—where the material is stretched into thin shapes.
Ideal for:
- Ammunition shells
- Lamp sockets
- Stamped electronic parts
- Flexible housings
Caution:
Expect slower cutting, more burrs, and lower finish quality if you machine it.
3. If You Need Marine or Wet-Environment Durability → Use C46400 (Naval Brass)
This brass includes tin, which improves corrosion resistance. I’ve used this in valve seats and hardware for coastal applications where standard brass would’ve corroded within months.
Ideal for:
- Boat hardware
- Steam systems
- Saltwater valves
- Piping supports
Pro Insight:
Run at slower speeds when machining—it’s a bit tougher than free-cutting brass.
4. If You Need Lead-Free, Eco-Compliant Parts → Use C69300 (ECO Brass)
This one’s gotten popular in the last few years. It’s compliant with RoHS, NSF, and California’s lead-reduction laws. And it still machines surprisingly well for a lead-free alloy.
Ideal for:
- Potable water systems
- Food-grade valves
- Sensor housings
- European or California export parts
My Experience:
I’ve machined C693 for a water meter housing—nearly identical performance to C360, but safer and export-friendly.
5. If You’re Hot Forging Before Machining → Use C37700 (Forging Brass)
This grade is designed to be heated and forged into shape before any final machining. It’s widely used in the plumbing industry.
Ideal for:
- Valve bodies
- Faucet stems
- Fittings and unions
Design Note:
Ensure your forging dies and machines can handle the required forming forces—this brass is tougher than C360.
Matching Grades to Applications
To make this easier, here’s a quick guide to match brass metal types to your project:
Table: Application-Focused Brass Grade Selector
| Application Category | Recommended Brass Grade(s) | Why? |
|---|---|---|
| CNC Machined Parts | C36000 | Fast, clean, and tool-friendly |
| Plumbing (Standard) | C23000, C37700 | Corrosion resistance, forging friendly |
| Plumbing (Drinking Water) | C69300 | Lead-free, RoHS and NSF compliant |
| Marine Hardware | C46400 | Tin-enhanced for saltwater resistance |
| Electrical Connectors | C36000 | Great conductivity, thread retention |
| Deep Drawn Components | C26000 | Formability, elasticity |
| Decorative Hardware | C23000, C26000 | Warm color, polishable, stable over time |
How I Approach Grade Selection in Real Projects
In my process, I usually start by asking four questions:
- What mechanical loads will the part experience?
- Will the part contact water, chemicals, or food?
- Is high-speed machining or forming involved?
- Does the part need to meet RoHS, NSF, or other standards?
Once I have that, choosing the right brass metal grade becomes straightforward.
For example, in a recent job where we built a batch of acoustic sensor housings, the client wanted:
- Good machinability
- High electrical shielding
- NSF compliance (for use in medical spaces)
We went with C69300 ECO brass. The parts machined beautifully, held tight tolerances, and passed all compliance checks.
Summary: Don’t Just Choose “Brass”—Choose the Right Brass
Saying “we’ll use brass” in a project isn’t enough. There are dozens of options, and each one brings its own strengths and challenges. Picking the right brass metal grade can save you hours on the shop floor, reduce QA rejections, and ensure your parts perform in the real world.
When in doubt, talk to your material supplier or machinist early. And always remember: brass metal gives you options—it’s up to you to use them smartly.
Sourcing and Manufacturing Suggestions
When working with brass metal, the process doesn’t end at material selection. Sourcing the right brass and ensuring smooth manufacturing processes are just as crucial to delivering high-quality parts on time and within budget. Based on my experience, I’ve learned that the key to success lies in how well you manage both material procurement and vendor relationships.
In this chapter, I’ll cover key considerations for sourcing brass metal, including how to evaluate suppliers, what to look for in brass stock, and best practices for outsourcing the manufacturing process. This is your practical guide to getting your brass projects off the ground—and running smoothly.
Sourcing Brass Metal: What to Look For
Sourcing brass metal isn’t as simple as buying from the first supplier you find. Brass quality varies widely based on the alloy, manufacturing method, and specific supplier practices. Here’s what I’ve learned from years of working with brass metal across different applications.
1. Verify the Brass Grade and Composition
The first thing I always check is the alloy’s composition. Whether it’s C360, C260, or C693, I need to know exactly what I’m working with. Not all suppliers provide detailed material certifications, but I always ask for a certificate of analysis (COA) that confirms the alloy content and properties. It’s critical for ensuring you’re getting the right material for your specific use case—especially if you’re dealing with stringent quality standards (e.g., NSF for potable water systems).
2. Check for Material Certifications
Good suppliers will offer certifications for:
- Mill test reports (MTRs)
- RoHS compliance (for lead-free alloys)
- NSF certification (for drinking water applications)
I once worked on a high-precision plumbing project where we used lead-free brass metal. The material came with an MTR that outlined trace metal contents, ensuring it was compliant with the necessary safety standards.
3. Look for Material Consistency
Brass, like any alloy, can vary in quality from one batch to the next. That’s why I prioritize suppliers who provide material from consistent batches and make the COAs available for review. When I’m doing a larger run, I always request material from the same lot to avoid unexpected variations in machining characteristics.
A few years back, I sourced brass metal from a supplier that didn’t have batch consistency, and I noticed small variations in surface finish and machining speed. We switched to a different vendor that prioritized consistency—and I haven’t looked back since.
4. Determine Lead Time and Availability
Supply chain issues can happen, especially with materials like brass metal. I’ve been in situations where a great supplier couldn’t deliver on time, pushing back project deadlines. That’s why I always make sure to:
- Confirm delivery timelines
- Ask for stock availability (especially for non-standard grades)
- Have a backup supplier in case of delays
For time-sensitive projects, I make sure to build in an extra buffer for delays—just in case.
Choosing the Right Brass Supplier
Choosing the right supplier is as much about the relationship as it is about price. In my experience, a good supplier isn’t just a source for material—they’re a partner in the success of your project.
Here are a few supplier characteristics I always look for:
1. Experience with Brass
Suppliers who specialize in brass metal have a deeper understanding of the material’s nuances. They know how to handle it during shipping, how to package it to avoid damage, and what machining tips can make your life easier. I prefer suppliers who have a solid track record of working with brass for the same type of components I need.
2. Customization and Small Orders
Even if you’re working on a high-volume project, there may be instances where you need customized brass stock (e.g., cut-to-length bars or pre-machined billets). Some suppliers offer this service at no additional cost for small or medium-sized orders, while others have stringent minimum order requirements. Depending on the size and scale of your project, ensure your supplier can accommodate your needs.
3. Proven Quality Control
A great supplier should have robust quality control measures in place to ensure the material they deliver meets your specifications. Ask about their inspection processes. Do they have a lab that performs mechanical testing, hardness checks, or visual inspections? A solid quality assurance process will save you time on rework and prevent costly mistakes in production.
4. Customer Support
At the end of the day, if there’s a problem with your material or the delivery, you’ll want a supplier that responds quickly and professionally. I’ve had great experiences with suppliers who are proactive in resolving issues and transparent about potential delays. Always ask for references and check reviews or testimonials from other companies who have used them for brass metal sourcing.
Best Practices for Outsourcing Brass Manufacturing
Once you’ve secured your brass metal supply, the next step is to find a manufacturer who can turn your design into a finished part. In my experience, choosing the right manufacturer—and giving them the right information—can make or break the success of your project.
1. Match the Manufacturer’s Expertise to Your Part’s Needs
There’s a big difference between machining high-volume parts for plumbing and low-volume precision components for aerospace. Each application requires specific machinery, tooling, and experience. When selecting a manufacturer, ensure they have experience with the exact kind of brass metal you’re using and the type of machining process you need (e.g., CNC turning, milling, deep drawing, or stamping).
2. Provide Detailed Drawings and Tolerances
The more information you provide, the smoother the process will be. Always provide the manufacturer with detailed CAD drawings, exact material specifications, tolerances, surface finish requirements, and any other specifics about your part’s function (e.g., whether it will experience thermal cycling or vibration). Clear communication upfront saves time and prevents confusion during manufacturing.
I’ve learned this lesson through trial and error. One project involved a batch of brass metal fittings that were incorrectly machined because the tolerances weren’t communicated clearly to the shop. Once we clarified the requirements with detailed drawings, the second batch came out perfectly.
3. Verify Machining Processes Before Full Production
I always recommend a prototype or pilot run before committing to full-scale production. I’ve seen many cases where initial parts came out slightly off-spec, which could’ve been avoided with a pilot run. This is particularly critical when machining brass metal, as the material’s unique properties (e.g., its work hardening) can affect part geometry after machining.
4. Establish a Quality Control Process
A good manufacturer should have an established quality control (QC) process in place. This includes:
- Regular inspections during machining
- In-process checks for dimensional accuracy
- Final inspections and material certification reviews
I’ve found that insisting on post-production QC reports—especially for critical parts—gives me peace of mind and ensures that the final parts will meet both design and regulatory standards.
Working with Suppliers and Manufacturers for Long-Term Success
A lasting relationship with your brass metal supplier or manufacturer is key to avoiding future hiccups. It’s not just about getting material delivered on time—it’s about getting the best value, excellent communication, and a partner who can offer advice or recommend solutions as your needs evolve.
In my career, I’ve found that establishing clear expectations, maintaining strong communication, and building long-term relationships with suppliers and manufacturers can make all the difference between a project that meets deadlines and one that misses the mark.
Summary: Sourcing Brass Metal Like a Pro
Sourcing brass metal is a multi-step process that requires attention to detail at every stage, from choosing the right supplier to finalizing production runs. Always prioritize quality, consistency, and expertise. Don’t be afraid to ask questions, request certifications, and thoroughly vet potential suppliers.
With the right brass metal in hand and a reliable manufacturing partner, your project is already halfway to success.
Sustainability and Regulatory Aspects
As industries evolve, so do the standards and expectations surrounding materials and manufacturing processes. One area that has seen significant changes is sustainability. In recent years, there has been an increasing demand for more eco-friendly, sustainable materials that minimize environmental impact without compromising on performance.
Brass metal, though widely used in various industries, is no exception. Today, manufacturers and consumers alike are increasingly aware of the environmental implications of their material choices, and brass metal has adapted to these demands.
In this chapter, I will cover the sustainability aspects of brass metal, its recyclability, and how it meets regulatory requirements, including its role in the growing trend towards lead-free alloys. I’ll also share practical insights into how these factors impact design and manufacturing decisions.
The Environmental Benefits of Brass Metal
At first glance, brass metal might not seem like a particularly “green” material. After all, it’s an alloy of copper and zinc, both of which are mined from the earth. But once you dig into the details, you’ll see that brass metal is actually a remarkably eco-friendly material in several key areas.
1. Recyclability of Brass
One of the biggest environmental advantages of brass metal is its high recyclability. In fact, brass is one of the most recycled metals in the world. Whether it’s old plumbing fixtures, automotive parts, or electrical scrap, brass metal can be recycled and reused without significant degradation in its quality or properties.
In my experience, working with recycled brass metal doesn’t compromise on performance. The material keeps its properties intact after being recycled, and it’s just as effective as new brass metal in machining and industrial applications. This contributes to the circular economy, reducing the need for new mining and lowering the carbon footprint associated with brass production.
2. Reduced Mining Impact
Mining for copper and zinc, the primary components of brass metal, has a significant environmental impact, including habitat destruction, water pollution, and energy consumption. By using recycled brass, we reduce the need for mining these raw materials, which helps alleviate these environmental impacts. Recycled brass metal uses far less energy than producing new metal, which means lower emissions and a smaller environmental footprint.
While brass metal still relies on mining for raw materials, the recycling rate is so high that a significant portion of brass metal in circulation comes from recycled sources. For example, many brass components in plumbing, electronics, and automotive systems are made from scrap brass that’s been melted down and reused.
3. Energy Efficiency
Manufacturing brass metal from recycled material requires significantly less energy than producing it from raw ores. The process of recycling brass can cut energy usage by as much as 90%, which is a huge step in reducing industrial energy consumption. This contributes to reducing carbon emissions and is one of the key factors driving the adoption of brass metal in environmentally-conscious industries.
For manufacturers looking to make a tangible difference in their carbon footprint, using recycled brass offers an easy and cost-effective way to boost sustainability efforts. This isn’t just a trend—it’s a long-term solution that benefits the bottom line and the environment.
Lead-Free Brass: Meeting Regulatory Demands
A growing concern with brass metal has been the lead content in certain alloys. Historically, brass has been alloyed with lead to enhance machinability and durability. However, as public awareness of the dangers of lead exposure has grown, many industries—especially those involving food, water, and healthcare—have moved away from using leaded brass metal.
Lead is toxic, especially when it leaches into drinking water systems. That’s why regulatory bodies like the U.S. Environmental Protection Agency (EPA) and the European Union have imposed increasingly stringent standards to limit lead content in materials used for plumbing, medical, and food applications.
1. Lead-Free Alloys: An Industry Shift
Lead-free brass metal, such as C69300 (Eco Brass), is now the standard for drinking water fittings and other applications that require compliance with health and safety regulations. These alloys, while not as easy to machine as leaded brass, still offer excellent machinability and corrosion resistance, making them suitable for critical applications without the environmental concerns.
Many industries are transitioning to lead-free brass to meet RoHS (Restriction of Hazardous Substances) and NSF 61standards. RoHS regulations, for instance, are crucial for companies that manufacture electrical or electronic products, as they restrict the use of hazardous materials, including lead, in the production of components that will be used in consumer electronics.
In my experience, making the switch to lead-free alloys requires some adjustments in the machining process, but the long-term benefits far outweigh the initial learning curve. Lead-free brass is more than just a compliance measure—it’s a step toward safer and more sustainable manufacturing.
2. Lead-Free Brass and Its Challenges
While lead-free brass metal is a great alternative, it does come with some challenges. For example:
- Machining: Lead helps brass to cut smoothly and without friction. Without lead, the material becomes harder and more resistant to cutting, leading to increased tool wear and a slightly reduced machining speed.
- Cost: Lead-free brass metal can be slightly more expensive than leaded alloys due to the extra steps involved in refining and manufacturing these metals.
- Performance: Leaded brass tends to perform better in high-velocity applications or under extreme conditions. Lead-free brass, though still durable, may not always have the same level of strength and wear resistance.
Compliance with Global Standards
As global regulations evolve, manufacturers and designers must keep up with the latest compliance standards. Here are some of the key certifications and regulations that affect brass metal:
1. RoHS (Restriction of Hazardous Substances)
The RoHS Directive restricts the use of certain hazardous materials in electronic and electrical products. RoHS-compliant brass metal is free from lead, cadmium, mercury, and other toxic elements. For any electronic component manufacturer, ensuring that brass metal meets RoHS requirements is essential for market access, particularly in Europe.
2. NSF/ANSI 61 (Drinking Water Systems)
The NSF/ANSI 61 standard sets safety requirements for materials used in plumbing systems that come into contact with potable water. If your product includes brass metal components in contact with drinking water, it needs to be lead-free and comply with this certification. This regulation ensures the materials don’t leach harmful substances into the water supply, protecting both public health and the environment.
3. California Proposition 65
California’s Proposition 65 requires manufacturers to disclose when their products contain chemicals known to cause cancer, birth defects, or other reproductive harm. If your brass metal products are sold in California, you’ll need to ensure they are compliant with this regulation—particularly when it comes to lead content.
Sustainability in Practice: How Brass Helps the Circular Economy
One thing I’ve learned through working in various industries is that sustainability isn’t just about using “green” materials; it’s about embracing the circular economy. Brass metal is a perfect example of this. It is one of the most recycled metals in the world, and many of the brass products we use today are made from recycled brass metal.
This process not only conserves natural resources but also reduces the environmental impact associated with mining and refining new metal. The cycle of recycling brass metal—whether it’s turning old plumbing fixtures into new faucets or recycling scrap from manufacturing—is a powerful tool in building a more sustainable manufacturing ecosystem.
Summary: Sustainability and Regulatory Compliance with Brass Metal
To sum it up, brass metal is far from being a “non-environmental” choice. It’s a material that not only performs well in a variety of applications but also helps to meet the sustainability goals many industries are pushing for. By choosing lead-free brass alloys, using recycled materials, and adhering to regulatory standards, manufacturers can make responsible choices that benefit both their business and the planet.
As brass metal continues to evolve and adapt to stricter regulations and growing environmental demands, it remains a reliable, durable, and sustainable material choice for a wide range of industries—from plumbing to electronics, to luxury goods.
Summary and Final Thoughts
We’ve covered a lot of ground in this guide about brass metal—from understanding its fundamental properties to exploring its many applications and machining advantages. We’ve also discussed its sustainability benefits and regulatory compliance, which make it a truly versatile material in modern manufacturing.
So, where does all this leave us?
Brass Metal: A Multi-Faceted Material for Modern Manufacturing
One of the key takeaways from this article is that brass metal is not a one-size-fits-all material. It is incredibly adaptable, making it the go-to choice for everything from high-performance electronics components to aesthetic luxury goods. It can be recycled with minimal performance loss, it machines efficiently, and it holds up well in harsh environments.
Whether you’re designing parts for a consumer-facing product, ensuring compliance with water safety regulations, or machining small, precise components for aerospace, brass metal offers a wide array of benefits and solutions. Its ability to balance durability, machinability, and cost-effectiveness gives it an edge that few materials can match.
Why Brass Metal Should Be in Your Toolbox
I’ve worked with many materials over the years, but there’s something special about brass metal. It’s not only easy to machine and cost-effective but also remarkably versatile. The variety of alloys allows for specific optimization depending on your project’s requirements. From free-cutting brass for easy machining to corrosion-resistant alloys for marine environments, there’s a brass metal grade for every need.
If you haven’t yet considered brass metal for your next project, it might be time to take a closer look. Brass can reduce production time, extend tool life, and even improve the final appearance of your product. For designers, engineers, and manufacturers, it offers solutions across industries—from electronics to plumbing, and even luxury products.
Final Takeaways on Brass Metal Machining and Use
- Machining Advantages: Brass metal is easy to machine with minimal tool wear and great surface finishes. Its predictability in cutting makes it a favorite in high-precision environments.
- Sustainability: Brass is highly recyclable, which reduces environmental impact. By using recycled brass, you contribute to the circular economy and reduce your carbon footprint.
- Compliance and Lead-Free Options: With increasing regulation on lead content, lead-free brass metal grades (like C69300) allow manufacturers to meet modern health and safety standards for potable water, electronics, and more.
- Versatility: Brass metal excels in diverse applications, from plumbing parts and electrical connectors to decorative luxury goods and aerospace components.
- Material Selection Matters: Choosing the right brass metal grade is crucial for achieving the best performance in your projects. Matching the material’s properties to the specific requirements of the application will save time, money, and effort in the long run.
Next Steps: How to Leverage Brass Metal for Your Projects
- Evaluate Your Project Needs: Is your part in a harsh environment? Does it require a specific finish or machinability? Start by matching the brass grade to the application.
- Work with the Right Supplier: Look for a supplier who offers traceable, high-quality brass with material certifications and reliable lead times. Be sure to choose a supplier who understands your industry needs.
- Focus on Sustainability: Consider using recycled brass or lead-free alloys to reduce environmental impact and meet regulatory standards.
- Optimize Your Machining Process: When machining brass metal, always fine-tune your cutting parameters based on the material grade. With proper machining techniques, you’ll get better finishes and longer tool life.
In Conclusion
Brass metal is a material that has stood the test of time—and for good reason. Its combination of machinability, durability, and aesthetic appeal makes it indispensable in a wide range of industries. Whether you’re working on a new plumbing system, a custom luxury piece, or a precision electronic component, brass metal is a material you can count on for performance, sustainability, and overall value.
By selecting the right grade, applying the proper machining techniques, and sourcing from reputable suppliers, you can harness the full potential of brass metal for your next project. Embrace its versatility, and you’ll see why this material continues to be a favorite in modern manufacturing.
Thank you for reading! I hope this guide has given you a comprehensive understanding of brass metal and its many applications. If you have any further questions or need advice on sourcing or machining brass metal, feel free to reach out.
FAQ
- What is the best brass metal grade for CNC machining?
- C36000 is considered the best for CNC machining because of its excellent machinability and ease of cutting.
- Can brass be used in marine applications?
- Yes, C46400 (Naval Brass) is specifically designed for marine environments, offering great resistance to corrosion in seawater.
- What is the most common use for brass in electronics?
- Brass metal is often used for electrical connectors, pins, and terminals because of its conductivity and ability to withstand high temperatures.
- What’s the difference between leaded and lead-free brass?
- Leaded brass contains a small percentage of lead to improve machinability, while lead-free brass is used to meet environmental and safety regulations, especially for potable water systems.
- How sustainable is brass?
- Brass is highly recyclable and can be reused indefinitely without losing its quality, making it a sustainable material choice.
- Why does brass have better machinability than aluminum?
- Brass has better machinability because it is softer and generates fewer burrs, leading to smoother cuts and less tool wear compared to aluminum.
- Is brass metal used in the automotive industry?
- Yes, brass metal is used in automotive parts, including fuel system components, connectors, and bearings due to its corrosion resistance and durability.
- Can I use brass for food-related applications?
- Lead-free brass can be used in food-related applications like plumbing fixtures and food-safe connectors, as it meets regulatory standards like NSF.
- How do I prevent tarnishing in brass parts?
- Brass can tarnish over time due to exposure to air and moisture. Coating the parts with a clear lacquer or regularly polishing them can help maintain their shine.
- Does brass work well for high-precision applications?
- Yes, brass is ideal for high-precision applications, especially in industries like instrumentation and aerospace, where dimensional stability and tight tolerances are critical.
Authoritative Knowledge References
To further explore the properties, applications, and sustainability of brass metal, the following verified and reputable sources provide in-depth information:
- Brass – Wikipedia
An extensive overview of brass, detailing its composition, history, types, and various applications across industries.
🔗 https://en.wikipedia.org/wiki/Brass - Free-Cutting Brass (Alloy 360) for Automatic Screw Machine Products – Copper Development Association
This resource discusses the properties and advantages of Free-Cutting Brass (C36000), emphasizing its machinability and widespread use in manufacturing.
🔗 https://www.copper.org/applications/rodbar/alloy360/alloy360.html - Properties of Wrought and Cast Copper Alloys – Copper Development Association
A comprehensive database providing detailed mechanical and physical properties of various copper alloys, including different brass grades.
🔗 https://www.copper.org/resources/properties/db/basic-search.php - Microstructural Examination of Copper Alloys – DoITPoMS, University of Cambridge
An educational resource explaining the microstructures of copper alloys, including brass, and how these structures influence material properties.
🔗 https://www.doitpoms.ac.uk/tlplib/microstructural_exam/cualloys.php - Brass Rod Alloys Added To Annex N-2 of NSF/ANSI/CAN 61 – NSF International
An article detailing the inclusion of specific brass rod alloys in the NSF/ANSI/CAN 61 standard, which pertains to materials safe for use in drinking water systems.
🔗 https://www.nsf.org/knowledge-library/brass-rod-alloys-added-nsf-ansi-can-61 - Properties and Applications of Brass and Brass Alloys – AZoMaterials
This article provides insights into the various properties of brass alloys and their suitability for different engineering applications.
🔗 https://www.azom.com/article.aspx?ArticleID=4387
