Chapter 1:Introduction
Why 80/20 Aluminum and CNC Are the Perfect Match?
I first came across 80/20 Aluminum a few years back, working on a small automation project. At the time, I was building a simple conveyor frame for a local workshop. I’d previously relied on welding or bolted steel frames, but those methods were slow, cumbersome, and inflexible. That’s when someone recommended using 80/20 Aluminum profiles instead.
If you’re new to this topic, 80/20 Aluminum—also known as T-slot aluminum extrusion—is a modular building system. It lets you assemble structural frames quickly without welding or complex machining. But, as I soon discovered, while it’s versatile right out of the box, the real power lies in customizing it through CNC machining.
Why This Combination?
I realized pretty quickly that using 80/20 Aluminum alongside CNC machining was a game changer. Sure, standard 80/20 Aluminum profiles work fine for basic structures, but as soon as your project requires precision, custom joints, or very specific mounting holes, CNC becomes essential.
Here’s what makes the pairing so effective:
- Speed and flexibility: You start with standard, off-the-shelf 80/20 Aluminum profiles and then use CNC machining to tailor them exactly to your project needs.
- Precision and repeatability: CNC machines allow for exact measurements. This means every hole, slot, or joint you create aligns perfectly, every single time.
- Professional appearance: CNC machining gives the 80/20 Aluminum frame a polished, professional look that’s essential for customer-facing projects or demonstrations.
Who Benefits from This Combination?
From personal experience, I’ve seen professionals across multiple industries benefit from pairing 80/20 Aluminumwith CNC machining:
| Industry | Typical Applications |
|---|---|
| Industrial Automation | Robot frames, conveyors, machine guarding |
| Aerospace & Aviation | Test stands, custom maintenance equipment |
| Automotive Manufacturing | Jigs and fixtures, assembly line tooling |
| Electronics & Tech | Custom lab benches, equipment racks, test stations |
| Medical & Pharmaceutical | Laboratory setups, ergonomic workstations, custom supports |
| DIY and Maker Community | CNC machines, 3D printer frames, custom furniture |
These professionals, myself included, rely heavily on the flexibility that CNC machining provides when customizing 80/20 Aluminum structures.
My Experience with 80/20 Aluminum and CNC
I still remember clearly my first real experience integrating CNC with 80/20 Aluminum. It was a project that needed ultra-precise alignment for sensor mounts on an automated inspection table. After standard profile assembly failed to give me the precision I needed, I took the profiles to a local CNC shop.
Seeing the finished result was eye-opening. Every hole, thread, and slot was exact. Assembly took half the time, and the sensors aligned perfectly. Since that project, CNC machining has become standard practice for me whenever I’m working with 80/20 Aluminum.
Chapter 2: What Is 80/20 Aluminum?
When I first heard the term “80/20 Aluminum,” I assumed it was a material composition ratio, perhaps alloy content. I soon learned, though, that the name actually symbolizes the Pareto principle—commonly known as the 80/20 rule—which means you can achieve 80% of your desired results using just 20% of your effort.

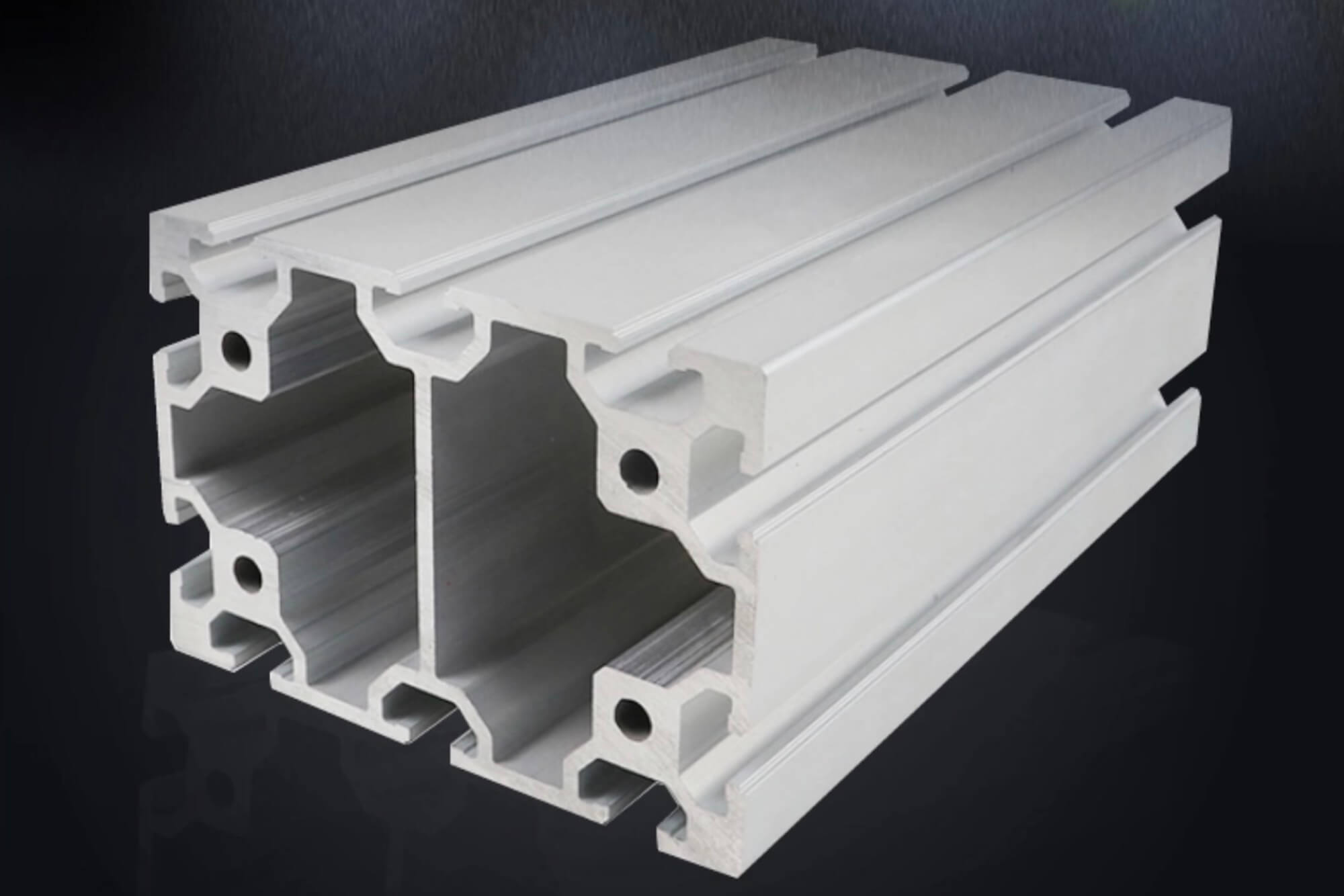

80/20 Aluminum profiles, also called T-slot aluminum extrusions, follow precisely this idea. With minimal effort, you can quickly assemble versatile, robust, and adaptable structural frames. I have personally found these profiles to be an exceptional choice for everything from workstations to complex industrial automation setups.
What Exactly is 80/20 Aluminum?
80/20 Aluminum profiles are extruded aluminum sections featuring standardized T-slots. These slots allow you to assemble frames easily, attaching brackets, hinges, wheels, or customized CNC-machined components wherever you need them. The profiles come in a variety of shapes and sizes, standardized across the industry.
I’ve used many different standard profiles, but the most common in my experience include:
- 10-Series: Primarily used in small-scale applications like prototyping.
- 15-Series: Ideal for medium-duty applications, popular in automation.
- 40-Series (metric): The industry standard for heavy-duty industrial applications.
Here’s a comparison chart of common 80/20 Aluminum profiles I’ve frequently worked with:
| Profile Series | Typical Sizes (inches/mm) | Common Applications | Strength |
|---|---|---|---|
| 10-Series | 1″x1″ (25mm) | DIY, small fixtures, prototyping | Light-duty |
| 15-Series | 1.5″x1.5″ (38mm) | Automation, furniture, display stands | Medium-duty |
| 25-Series | 25x25mm, 25x50mm | Metric-based industrial framing | Medium-duty |
| 30-Series | 30x30mm, 30x60mm | Robotics, equipment racks | Medium to Heavy |
| 40-Series | 40x40mm, 40x80mm | Heavy-duty machinery, workstations | Heavy-duty |
| 45-Series | 45x45mm | Large industrial setups | Very Heavy-duty |
In my projects, 80/20 Aluminum consistently outperformed traditional steel frames in speed of assembly, flexibility, and ease of modification. The T-slot design lets you adjust and reconfigure as needed—something traditional welded or bolted frames just can’t do efficiently.
Why Choose 80/20 Aluminum Over Traditional Steel or Wood?
From personal experience, here are clear reasons why I recommend 80/20 Aluminum over other materials:
- Quick Assembly and Adjustment: No welding or complex cutting required. Components are modular and standardized.
- Lightweight and Strong: Aluminum is about 1/3 the weight of steel, making large frames easier to handle, but it’s still remarkably strong.
- Corrosion-Resistant: Unlike steel, 80/20 Aluminum won’t rust, making it suitable for humid or harsh environments.
- Easy Integration: T-slots make attaching accessories, sensors, cables, and CNC-machined parts simple and fast.
My experience on a factory floor confirmed these advantages. We built identical workstations from steel and 80/20 Aluminum side by side. The aluminum workstation took only three hours to complete, compared to nine hours for the steel version, due to welding, grinding, and painting processes.
Here’s a summary of my practical comparison:
| Aspect | 80/20 Aluminum | Welded Steel Frame | Wood Frame |
|---|---|---|---|
| Assembly Time | 2-4 hrs | 8-10 hrs | 6-8 hrs |
| Adjustability | High | Low | Moderate |
| Weight | Lightweight | Heavy | Medium |
| Corrosion Resistance | Excellent | Poor (unless coated) | Poor |
| CNC Compatibility | Excellent | Good | Limited |
| Reusability | High | Low | Moderate |
Clearly, for most modern industrial applications I’ve encountered, 80/20 Aluminum stands out as the superior solution.
Chapter 3: CNC Machining Basics for Aluminum
If you’re new to the world of CNC machining, it might seem daunting. Trust me, I felt the same initially. But once I got familiar with the process, I realized how straightforward and transformative CNC machining can be—especially when used with 80/20 Aluminum.
What Is CNC Machining Exactly?
CNC stands for Computer Numerical Control. It refers to automated machine tools controlled by computers rather than manual operation. CNC machines precisely cut, drill, mill, and shape materials according to detailed digital instructions. With aluminum, CNC machining is incredibly efficient due to aluminum’s machinability.
When machining 80/20 Aluminum, I typically focus on processes like:
- Milling: Cutting precise shapes, channels, and slots.
- Drilling: Creating accurate holes for bolts or mounting.
- Tapping: Cutting internal threads for screws and bolts.
- Chamfering & Counterboring: Making edges smoother or creating recesses for flush fittings.
Here’s a simple reference table of typical CNC operations I use frequently:
| Operation | Purpose | Common Use with 80/20 Aluminum |
|---|---|---|
| Milling | Custom slots, pockets, precise profiles | Creating precise mounts, joining components |
| Drilling | Holes for screws, bolts, fittings | Assembly and component attachment |
| Tapping | Creating threaded holes | Strong, reusable fastening points |
| Counterbore | Recessed holes for flush bolt heads | Improved aesthetics and safety |
| Chamfering | Edge finishing to remove sharp corners | Enhanced safety, professional appearance |
| Cutting | Custom lengths or angled ends | Precise fitting and alignment |
Why CNC Machining is Ideal for 80/20 Aluminum
When I first tried assembling complex structures, using standard brackets alone quickly became limiting. Brackets might work fine initially, but soon I needed exact placement for components—sensor mounts, actuators, or other hardware. CNC machining solved these issues instantly by providing the exact customizations I required.
Here’s why CNC machining is ideal for 80/20 Aluminum profiles:
- Precision and Consistency: CNC machines provide tolerances as tight as ±0.001 inches. This precision ensures that every joint, hole, or slot fits exactly, every single time.
- Complexity Without Hassle: CNC allows complex features impossible or impractical with manual tools.
- Rapid Prototyping and Production: Quickly move from CAD designs to finished parts, streamlining development and assembly.
I vividly remember a situation where a critical conveyor system needed precisely aligned guide rails. With manual drilling, alignment errors were common. By switching to CNC machining, every hole was perfectly aligned, dramatically improving reliability and speed of assembly.
Materials and Tooling for CNC Aluminum
In my projects, tool choice greatly affects results when machining aluminum. Typical CNC tooling for aluminum includes:
- Carbide End Mills: Durable and precise, ideal for milling aluminum.
- High-Speed Steel (HSS) Drills: Cost-effective for drilling holes.
- Thread Taps: Specialized taps for creating precise threads.
Choosing the correct tool speed and feed rates is crucial. Here’s a typical CNC tooling guideline I follow for machining aluminum profiles:
| Tool Type | Recommended Speed (RPM) | Feed Rate (in/min) | Application |
|---|---|---|---|
| ¼” Carbide Mill | 10,000–12,000 RPM | 50–120 IPM | Milling slots |
| ⅛” Carbide Mill | 12,000–15,000 RPM | 30–90 IPM | Detail milling |
| #7 HSS Drill | 2,000–3,000 RPM | 10–20 IPM | Drilling for ¼” tap |
| M6 Thread Tap | 400–600 RPM | 5–10 IPM | Threading holes |
Understanding these basics gave me consistent high-quality results, turning 80/20 Aluminum from standard profiles into precision structures seamlessly.
Chapter 4: Turning Standard Profiles into Custom Structures
When I first began building structures with 80/20 Aluminum, I thought standard profiles alone would cover all my needs. Initially, that was true—basic frames were easy to assemble and adjust. But it wasn’t long before my projects became more demanding, pushing the limits of what standard profiles and brackets could achieve.
It was clear I needed a solution that combined the simplicity of modular 80/20 Aluminum with the flexibility to create custom features exactly where I needed them. CNC machining quickly emerged as the critical solution, turning standard, off-the-shelf aluminum into precisely tailored structures.
Beyond Basic Assembly: My Experience
In my early attempts to create complex, highly-functional frames, I noticed several limitations of standard 80/20 Aluminum:
- Limited Mounting Options: Without custom holes or slots, positioning equipment precisely became difficult.
- Structural Rigidity Issues: Standard brackets weren’t always robust enough for heavy loads or precise alignments.
- Aesthetic Limitations: Rough edges and visible hardware detracted from the professional look I wanted.
My first CNC-enhanced 80/20 Aluminum project was an automation frame that needed multiple precise mounting points for sensors and linear actuators. Manually drilling and tapping were possible, but errors in alignment were inevitable, wasting both time and material. CNC machining solved these issues immediately, providing exact, repeatable results.
Key Advantages of CNC-Machined 80/20 Aluminum
Here’s why CNC machining rapidly became my go-to choice for customizing 80/20 Aluminum profiles:
- Perfect Precision: CNC machining routinely achieves tolerances as tight as ±0.001 inch. This level of precision ensures every bolt hole, slot, or component fits exactly, eliminating misalignment problems.
- Time and Cost Savings: While CNC might seem more expensive initially, I’ve found it reduces overall project costs significantly by minimizing waste, rework, and assembly time.
- Design Freedom: CNC lets me create complex shapes and features—like custom slots, mounting patterns, or unique connector interfaces—unavailable in standard hardware.
To illustrate, here’s how CNC machining directly impacted one of my automation frame projects:
| Metric | Without CNC Machining | With CNC Machining |
|---|---|---|
| Total Assembly Time | 12 hours | 4 hours |
| Misalignment Issues | Frequent (30% rework) | None |
| Component Accuracy | ±0.05 inches | ±0.001 inches |
| Project Cost (labor+materials) | $1,500 | $900 |
| Professional Appearance | Moderate | Excellent |
| Structural Integrity | Moderate | High |
As you can see, CNC machining transformed my experience, providing tangible benefits.
Real-Life Scenario: Precision Assembly
A particularly demanding project I recall was constructing a robotic arm base. Using standard profiles alone, I couldn’t achieve the exact hole placement required. The robotic arm needed precise positioning holes with minimal deviation. Any misalignment would significantly affect the robot’s performance and safety.
CNC machining allowed precise drilling and tapping directly into the 80/20 Aluminum profiles. Once assembled, the robotic arm’s accuracy increased noticeably. Downtime due to alignment adjustments dropped by over 90%, drastically improving productivity.
In essence, CNC machining isn’t merely a luxury—it’s a necessity for precision.
Chapter 5: Preparing 80/20 Aluminum for CNC Machining
Designing for CNC machining isn’t complicated, but there are crucial factors to consider. Early in my career, I learned the importance of properly preparing my designs before taking my 80/20 Aluminum profiles to the CNC shop. Good preparation saves time, money, and ensures consistent results.
Start with Clear CAD Models
Every CNC-machined project begins with CAD (Computer-Aided Design). Initially, my CAD models were simple, but I quickly discovered that detailed, well-defined models reduce mistakes and streamline machining.
Here are key points I now always include in my CAD models:
- Exact Hole Sizes and Positions: Clearly defined hole locations, dimensions, and tolerances.
- Thread and Tapping Specifications: Include thread sizes (e.g., M6, ¼-20) in your model notes.
- Slot or Pocket Dimensions: Clearly dimensioned pockets or slots, ensuring CNC operators understand precisely what’s needed.
- Chamfer and Edge Finish: Specify chamfer sizes or fillet radii directly in the model to avoid sharp edges.
This upfront clarity significantly reduced confusion and miscommunication during machining, saving me repeated trips to the machine shop.
Choosing Tolerances
Precision is a hallmark of CNC, but specifying overly tight tolerances can unnecessarily increase costs and machining time. Based on my experience with various projects, here’s a practical tolerance guide I often use when machining 80/20 Aluminum:
| Feature Type | Recommended Tolerance | Typical Application |
|---|---|---|
| Mounting Holes | ±0.003 inches | General assembly |
| Alignment Slots | ±0.002 inches | Precise alignment |
| Threaded Holes | ±0.002 inches | Strong mechanical fastening |
| Profile Length | ±0.010 inches | Structural framework |
| Pocket Depth | ±0.003 inches | Component seating |
| Chamfers | ±0.005 inches | Edge finishing |
These tolerances have consistently provided a balance between precision and machining cost in my projects.
Material and Profile Selection
Not all aluminum profiles are identical. Selecting the right 80/20 Aluminum profile and material grade is essential.
Common aluminum grades for 80/20 Aluminum profiles are:
- 6061-T6 Aluminum: Excellent machinability, strength, corrosion resistance—ideal for most applications.
- 6063-T5 Aluminum: Slightly softer, good for non-structural parts, easier machining but lower strength.
From experience, I mostly use 6061-T6 aluminum due to its superior strength and machinability.
| Material Type | Machinability | Strength | Corrosion Resistance | Typical Use |
|---|---|---|---|---|
| 6061-T6 Aluminum | Excellent | High | Very Good | Structural frames |
| 6063-T5 Aluminum | Very Good | Medium | Good | Non-load parts |
Avoiding Common Design Errors
Early on, I made mistakes that significantly complicated CNC machining:
- Inadequate Clearance: Holes or features placed too close to profile edges can cause structural weaknesses. Leave at least 0.25-inch clearance from the edge.
- Complexity Without Purpose: Overly complex designs increase costs without adding value. Keep it simple whenever possible.
- Ignoring Tool Accessibility: Designs that don’t consider CNC tool access lead to machining difficulties. Always visualize tool paths clearly.
By keeping these considerations in mind, my CNC machining projects became smoother, faster, and cheaper.
Chapter 6: Key CNC Operations to Transform 80/20 Profiles
At this point, you might be asking: What exactly can CNC do to 80/20 Aluminum? The short answer is—more than you think.
I’ve personally transformed dozens of basic 80/20 Aluminum extrusions into highly specialized components using nothing more than a CNC mill and a bit of foresight. The real magic lies in how CNC operations can turn something as simple as a standard extrusion into a fully functional precision part.
Let me walk you through the most important CNC operations I use regularly, and how they directly apply to 80/20 Aluminum customization.
1. Drilling – Your First Step Toward Precision
Basic, yes. But critical. I’ve drilled thousands of holes into aluminum extrusions over the years. Doing this by hand can work—but it’s slow, inaccurate, and easily ruined.
With CNC drilling:
- I get consistent hole placement
- I can drill at precise depths
- It saves hours of time, especially on repeat jobs
Examples:
- Bolt holes in exact alignment for attaching linear rails
- Sensor mounts placed exactly 150mm apart
- Recessed pilot holes to avoid breakout on exit
2. Tapping – Strong, Threaded Connections
One of the best upgrades you can give an 80/20 profile is a threaded hole. I usually tap mounting holes after drilling. With CNC, I’ve been able to eliminate all the headaches of cross-threading or off-center hand taps.
Most-used thread sizes in my workflow:
- ¼-20 UNC for general assembly
- M5 and M6 for metric accessories
- M8 for structural fasteners
3. Counterboring – Flush and Functional
When I’m working on customer-facing projects—like a machine enclosure or product demo stand—looks matter. CNC counterboring lets bolt heads sit flush or recessed into the aluminum surface. It’s clean, it’s safe, and it’s easy to repeat.
A typical application is on a sliding door panel I made using 80/20. The flush bolts kept the panel from snagging during operation. That minor design choice made a major difference in user experience.
4. Slotting – For Alignment and Accessories
This is where CNC outshines manual methods. Custom slots:
- Let me fit cable channels
- Guide linear motion components
- Provide expansion points for thermal tolerance
Slot depth, width, and placement all matter—especially when working with pre-mounted electronics or motors.
One time, I needed a tight cable duct in a 40×40 profile. CNC milling a 5mm-wide slot made it easy to embed the cable fully within the extrusion, protecting it from damage and improving aesthetics.
5. Pocketing – Mount Electronics or Hardware Cleanly
In more advanced projects, I’ve milled out pockets to:
- Seat PCBs flush inside the profile
- Embed sensors, magnets, or alignment keys
- Cut weight from non-load-bearing sections
I once designed a vision inspection rig where the camera mount needed perfect alignment. CNC-pocketed seats ensured the camera’s housing sat flush and perfectly parallel with the rail system. No shims, no fuss.
6. Profiling and Contour Cutting – Going Beyond Square
Sometimes, square cuts just don’t cut it. I’ve used profiling to:
- Angle frame corners
- Create decorative panels
- Shape end caps or feet
With contouring, I’ve even cut branding into demo units. Nothing impresses like a precisely milled company logo into anodized 80/20 Aluminum.
7. Deburring and Chamfering – Safe and Smooth Edges
While not technically structural, these finishing touches matter. CNC chamfering gives a polished look, and more importantly, removes sharp edges that could catch wires, gloves, or skin.
One of my earliest CNC jobs lacked proper edge finishing. A technician sliced their hand on a sharp profile corner. Since then, I always chamfer exposed aluminum edges.
Quick CNC Operation Reference for 80/20 Aluminum
Here’s a table summarizing key CNC operations and their benefits when working with 80/20 Aluminum:
| CNC Operation | Function | Use Case Example | Importance |
|---|---|---|---|
| Drilling | Create holes for screws, bolts | Sensor mounting, bracket attachment | Essential |
| Tapping | Add threads to holes | Direct fasteners, modular add-ons | High |
| Counterboring | Recess bolt heads | Flush finishes, safety | Medium |
| Slotting | Create linear channels | Cable routing, linear rail guides | High |
| Pocketing | Carve inset shapes | Flush PCB or hardware mounting | Medium-High |
| Profiling | Cut to custom shapes | Frame ends, decorative edges | Medium |
| Chamfering | Remove sharp edges | Safe handling, professional appearance | Essential |
When to Apply Which Operation?
My general rule:
- Use drilling, tapping, and counterboring for almost every functional frame.
- Use slotting and pocketing when you need enhanced fit or integration.
- Use profiling and chamfering when aesthetics or edge safety are priorities.
The Bottom Line
CNC is more than just a way to cut metal—it’s a tool to turn your design vision into reality. Every one of these operations has helped me push the limits of what 80/20 Aluminum can do. And the best part? Once I set up the CAD files, I can repeat them again and again with near-zero error.
Chapter 7: Real-World Use Cases
When I started using 80/20 Aluminum, it was on small projects—mostly one-off workbenches or test frames. But as I got deeper into combining it with CNC machining, I realized just how scalable and powerful this combo could be. Over the past few years, I’ve used 80/20 Aluminum in everything from prototyping automation systems to building semi-permanent production equipment.
In this chapter, I’ll walk you through a few real-world examples that show the versatility of CNC-machined 80/20 Aluminum, and why it’s become a staple in industries ranging from manufacturing to research labs.
Use Case #1: Automated Conveyor Line for a Packaging Plant
Industry: Industrial Automation
Objective: Build a modular, easily modifiable conveyor frame
Tools Used: CNC-milled profiles, drilled/tapped for motor mounts and sensors
Overview:
I was contracted by a mid-sized packaging facility that wanted to switch from rigid welded steel frames to something more adaptable. We designed a modular conveyor structure using 80/20 Aluminum that allowed them to swap conveyor lengths, reposition motors, and add new sensors without redesigning the entire system.
What CNC Made Possible:
- CNC-drilled motor mounts on horizontal cross-beams
- Tapped holes for encoder brackets and photoelectric sensors
- Machined alignment notches for easy assembly and expansion
Outcome:
Downtime during maintenance dropped by 40%, and the plant could modify the conveyor in-house using spare CNC-processed profiles. The final structure looked polished, clean, and professional—an added bonus during audits.
Use Case #2: Modular Electronics Test Bench for a University Lab
Industry: Education / R&D
Objective: Design an adjustable workbench for student experiments
Tools Used: CNC-slotting, pocketing, and profiling
Overview:
I worked with a university engineering department to develop a lab bench that could support a rotating set of electronics experiments. Requirements included a clean look, flexible component mounting, and cable management.
How CNC Helped:
- Pocketed seats in the T-slot profiles to embed Raspberry Pi units
- Slotted channels for cable routing and fast-access wire paths
- Custom-shaped aluminum end-caps with engraved labeling
Result:
Students had access to a plug-and-play learning environment. Instructors could reconfigure the benches in minutes. Several professors later told me it improved class project scores because students could focus on design, not hardware frustrations.
Use Case #3: Custom-Made Camera Mount for a Robotics Team
Industry: Robotics (Education/Competition)
Objective: Lightweight, rigid, and adjustable camera arm
Tools Used: CNC-drilling, chamfering, contour cutting
Overview:
A high school robotics team reached out for help creating a camera mount that would fit onto their drive base. The mount needed to be lightweight but rigid, allow for adjustability, and house wiring internally.
Why CNC Was Essential:
- Precision drill holes to align the camera with the robot’s motion system
- Recessed wiring slots to keep cables protected during matches
- Chamfered edges to prevent damage during handling
Takeaway:
The robot won first place at a regional competition. They credited the CNC-machined 80/20 Aluminum arm as one of the key factors that helped them capture better visual data during navigation.
Use Case #4: 3D Printer Enclosure with Integrated Ventilation
Industry: Maker / DIY
Objective: Build a quiet, enclosed 3D printer chamber with fume control
Tools Used: CNC-profiling, tapping, cutouts for electronics
My Personal Build:
I built this project for my home workshop. I wanted to enclose my open-frame 3D printer to reduce noise and vent out fumes from ABS printing. Using 80/20 Aluminum, I framed the enclosure and CNC-machined panels for fan mounts, LED strips, and electronics.
CNC Details:
- Machined vent slots on side panels
- Precision-cut panels for hinged doors
- Threaded holes for magnetic latches and electronics housing
Impact:
Noise dropped by 60%, and fumes were almost completely eliminated. Plus, the custom build looked sleek and professional, better than most commercial enclosures I had seen.
Use Case #5: Semi-Permanent Trade Show Display Frame
Industry: Marketing / Events
Objective: Design an easy-to-transport booth frame
Tools Used: CNC-drilled joints, labeled chamfers, contour-milled branding
Overview:
A marketing agency needed a trade show frame they could break down and reassemble for events across the country. The structure had to be strong, light, and visually appealing.
Highlights:
- CNC-labeled joints for quick assembly
- Contoured slots for panel inserts and LED lighting
- Custom-cut frame shapes displaying the client’s logo
Result:
The setup process went from 6 hours to 90 minutes, and the frame survived a year’s worth of events with minimal wear. Plus, they reported that booth traffic increased due to the modern, eye-catching structure.
Summary Table: Real-World CNC Applications for 80/20 Aluminum
| Use Case | CNC Operations Used | Outcome |
|---|---|---|
| Conveyor Line | Drilling, Tapping, Alignment Notching | 40% less downtime, faster reconfiguration |
| Lab Test Bench | Pocketing, Slotting, Profiling | Higher student engagement, faster experiment setup |
| Robotics Camera Arm | Drilling, Chamfering, Recessed Wiring | Improved vision system, competition success |
| 3D Printer Enclosure | Profiling, Threading, Cutouts | Quieter prints, clean design, safe operation |
| Trade Show Booth | Contour Cutting, Chamfering, Labeling | Faster setup, reusable frame, brand recognition boost |
Each of these use cases started with basic 80/20 Aluminum profiles and turned into high-performing, precision-engineered systems—all thanks to CNC machining. Whether you’re a hobbyist, engineer, or educator, I’ve found that this approach consistently delivers results worth the effort.
Chapter 8: Planning Your Machining Workflow
Whenever I work with 80/20 Aluminum and CNC machining, cost and lead time are always top concerns. It doesn’t matter if you’re building a small test fixture or a full-scale machine frame—budget and time constraints will shape your decisions.
This chapter breaks down the typical costs, turnaround times, and practical planning tips I’ve used in dozens of real-world builds.
Cost Components of 80/20 Aluminum CNC Projects
Working with 80/20 Aluminum brings two cost categories: material costs and machining costs. Here’s a breakdown based on my experience:
| Cost Component | Typical Range (USD) | Notes |
|---|---|---|
| 80/20 Aluminum profiles | $6–$15 per foot | Depends on series (10, 15, 40, etc.) and profile size |
| Brackets and fasteners | $0.50–$3 per piece | Standard T-nuts, corner brackets, bolts |
| Custom CNC drilling | $2–$10 per hole | Based on diameter, depth, threading |
| CNC milling / slotting | $20–$100 per profile (avg.) | Depends on complexity and length |
| Tapping and threading | $1–$5 per thread | Based on thread size and quantity |
| Surface finishing | $10–$50 per part | Deburring, anodizing, chamfering |
| Engineering/CAD support | $50–$150/hr (if outsourced) | Optional, but valuable if you’re not doing CAD |
How to Estimate Your Total Project Budget
I usually follow a per-frame cost model. For a medium-sized frame (say, 48” x 48” x 24”) with light CNC customization, I budget:
- Raw aluminum: ~$150–$250
- CNC machining: ~$200–$400
- Hardware (fasteners, brackets): ~$50–$100
- Labor (if outsourced): ~$300–$500
- Total Estimated Cost: $700–$1,200
Of course, if you’re doing your own machining, those labor costs drop significantly. For me, doing CNC in-house cut my build costs by nearly 50%.
Lead Time Considerations
One of the biggest advantages of 80/20 Aluminum is how fast you can go from concept to build—especially with CNC.
| Task | Typical Lead Time (days) |
|---|---|
| Ordering standard profiles | 2–5 days |
| Basic CNC drilling/tapping | 1–3 days |
| Complex milling/pocketing | 3–7 days |
| Anodizing (if required) | 3–10 days |
| Full turnkey assembly | 5–14 days |
I’ve found that batching similar parts dramatically reduces both cost and time. If I have ten profiles needing similar slots, running them all at once on the CNC saves hours compared to one-at-a-time processing.
In-House CNC vs. Outsourcing
This is a common decision point. I’ve done both. Here’s my quick guide:
| Factor | In-House CNC | Outsourcing CNC |
|---|---|---|
| Cost | Lower per part | Higher upfront but better for high volume |
| Speed | Faster if setup already exists | Slight delays for scheduling and shipping |
| Precision | High (if skilled) | Very high (professional-grade equipment) |
| Equipment Needed | CNC mill, bits, coolant, workholding | None |
| Control | Total control | Limited to vendor capabilities |
When I had access to an in-house Tormach mill, I preferred doing most machining myself. For large production runs or complex operations, outsourcing saved me time.
Tips for Managing Workflow Efficiently
- Use templated CAD models for consistent components like corner profiles.
- Group similar operations (e.g., all drilling or all tapping) to save setup time.
- Communicate clearly with vendors—send annotated drawings or CAM files if possible.
- Plan for extras—order 10% more material than you think you’ll need (trust me).
- Consider hybrid workflows—basic cuts in-house, precision milling outsourced.
Planning ahead turns 80/20 Aluminum projects from chaotic guesswork into a professional-grade production process.
Chapter 9: Mistakes to Avoid When Machining 80/20 Aluminum
Let’s be real—every builder makes mistakes. I’ve made plenty while working with 80/20 Aluminum and CNC machining. Some cost me hours. Others cost me entire builds. Hopefully, these lessons save you from the same pain.
1. Skipping Design Verification
Early on, I skipped double-checking my CAD files before sending them for CNC. A single misaligned hole can ruin an entire profile. Now, I always:
- Use interference checks in CAD
- Print a 1:1 paper mockup for hole placements
- Have someone else review my design
2. Over-Tightening Fasteners in Machined Threads
CNC-tapped holes are precise, but also easy to strip—especially in aluminum. I once used a power drill to tighten M5 bolts. Stripped three threads instantly.
Fix: Use a torque wrench or at least a hand tool. Know your torque specs.
3. Using the Wrong Profile Series
Not all 80/20 Aluminum is equal. I once mixed 10-series and 15-series by mistake. They looked similar, but nothing lined up. Lost an entire weekend fixing it.
Tip: Label your stock by series or only order one size per project.
4. Forgetting Clearance for Tools
I used to design holes right up to edges. Bad idea. CNC bits need room to enter and exit without damaging adjacent material.
Fix: Leave at least ¼” from edges for safe machining. Adjust tool paths accordingly.
5. Choosing Too-Tight Tolerances
It’s tempting to go for ±0.001” on everything. But that level of precision is overkill (and expensive) for most 80/20 Aluminum frames.
Fix: Use tight tolerances only where alignment is critical. Relax the rest.
6. Ignoring Thermal Expansion
Long profiles can expand/shrink slightly with temperature. I learned this the hard way when a fit that was tight in winter became loose in summer.
Fix: Use slots or floating mounts to allow for small movement.
7. Failing to Deburr or Chamfer
I once handed off a frame without chamfering sharp CNC edges. The user cut their hand during setup. That was on me.
Fix: Always include edge finishing in your machining plan.
Final Words
Over the years, 80/20 Aluminum has become my go-to material for both rapid prototyping and final assemblies. And when you bring CNC machining into the mix, it unlocks a new level of design freedom, precision, and functionality.
I’ve built production lines, robotics systems, workbenches, and more—all starting with standard aluminum profiles, transformed through CNC into precision structures. If you’re serious about performance and customization, 80/20 Aluminum machining isn’t just helpful—it’s essential.
Whether you’re a hobbyist looking to upgrade your first project or an engineer building the next automation breakthrough, start with standard 80/20 Aluminum—then let CNC take it to the next level.
FAQ
- What is 80/20 Aluminum?
It’s a modular T-slot aluminum extrusion system used to build structural frames without welding. - Can you CNC machine 80/20 Aluminum profiles?
Yes, CNC machining is ideal for adding custom features like holes, slots, or brackets. - What’s the best aluminum type for machining 80/20 profiles?
6061-T6 is preferred for its strength, machinability, and corrosion resistance. - How accurate is CNC machining on 80/20 Aluminum?
Tolerances of ±0.001–0.003” are common for holes, threads, and slots. - What CAD software works best for designing custom 80/20 Aluminum parts?
I use Fusion 360 and SolidWorks. Both are great for mechanical assemblies. - How much does CNC machining cost for a small project?
For a simple frame with light machining, expect $300–$700 total. - Can I tap threads directly into 80/20 Aluminum?
Yes. CNC-tapped threads like M5, M6, or ¼-20 are common and effective. - Do I need special tools to work with 80/20 Aluminum?
Basic hand tools work, but a CNC mill dramatically increases precision. - Can I combine standard 80/20 hardware with CNC parts?
Absolutely. The modular design supports hybrid builds seamlessly. - Where can I buy 80/20 Aluminum profiles?
80/20 Inc., McMaster-Carr, Misumi, and Tnutz are good suppliers. - Is 80/20 Aluminum strong enough for industrial use?
Yes, especially 15-series and 40-series profiles. Used in automation, aerospace, and medical. - What kind of finish can I apply after CNC?
Anodizing, polishing, and bead-blasting are all common and effective. - How do I keep aluminum chips under control during machining?
Use coolant or compressed air. Shop vacs also help clean up quickly. - Can I machine anodized aluminum?
Yes, but the anodizing layer can wear tools faster and affect appearance. - What’s the best way to mount electronics on 80/20 frames?
I recommend CNC-milled pockets or brackets for flush, secure mounting. - How do I prevent misalignment during CNC machining?
Use jigs or v-blocks. Always start with square, well-supported stock. - Is CNC necessary for all 80/20 projects?
No—but for precision, aesthetics, or complex functionality, it’s a huge upgrade.
References & Further Reading
To support and expand on the concepts discussed in this article, here are trusted, science- and engineering-focused sources that provide deeper information on 80/20 Aluminum, aluminum machining, and CNC technologies.
1. T-slot Aluminum Extrusion – Wikipedia
A general overview of T-slot aluminum framing systems, including structure, use cases, and joining methods.
🔗 https://en.wikipedia.org/wiki/T-slot_aluminium_extrusion
2. Aluminum Alloy 6061 – Wikipedia
Technical properties, common uses, and machinability characteristics of 6061 aluminum—the most widely used alloy in 80/20 Aluminum profiles.
🔗 https://en.wikipedia.org/wiki/6061_aluminium_alloy
3. Aluminum Machining Guide – MakeItFrom.com
Comprehensive machinability data for aluminum alloys, including cutting speed, tool compatibility, and material properties.
🔗 https://www.makeitfrom.com/material-properties/6061-T6-Aluminum/
4. CNC Cookbook: Feeds & Speeds for Aluminum
Trusted community-based machining knowledge base with tested formulas for cutting, drilling, and slotting aluminum.
🔗 https://www.cnccookbook.com/cnc-feeds-speeds-guide-aluminum/
