What Is Spring Steel and Why Does It Matter?

“Can you machine spring steel?”
That was the exact question I asked myself years ago when I got handed a drawing for a small part with ridiculous tolerances—and the word “spring steel” stamped across the title block. I’d machined a lot of tool steels before, but spring steel? That was something else.

So I went deep into the specs, called some old mentors, tried different methods on the shop floor, and made every mistake you could make. Eventually, I figured out what worked and what didn’t. That’s what I’m going to share here.

If you’re an engineer trying to spec the right material, or a machinist trying not to kill another carbide insert, this guide is for you. Let’s break it down.

---

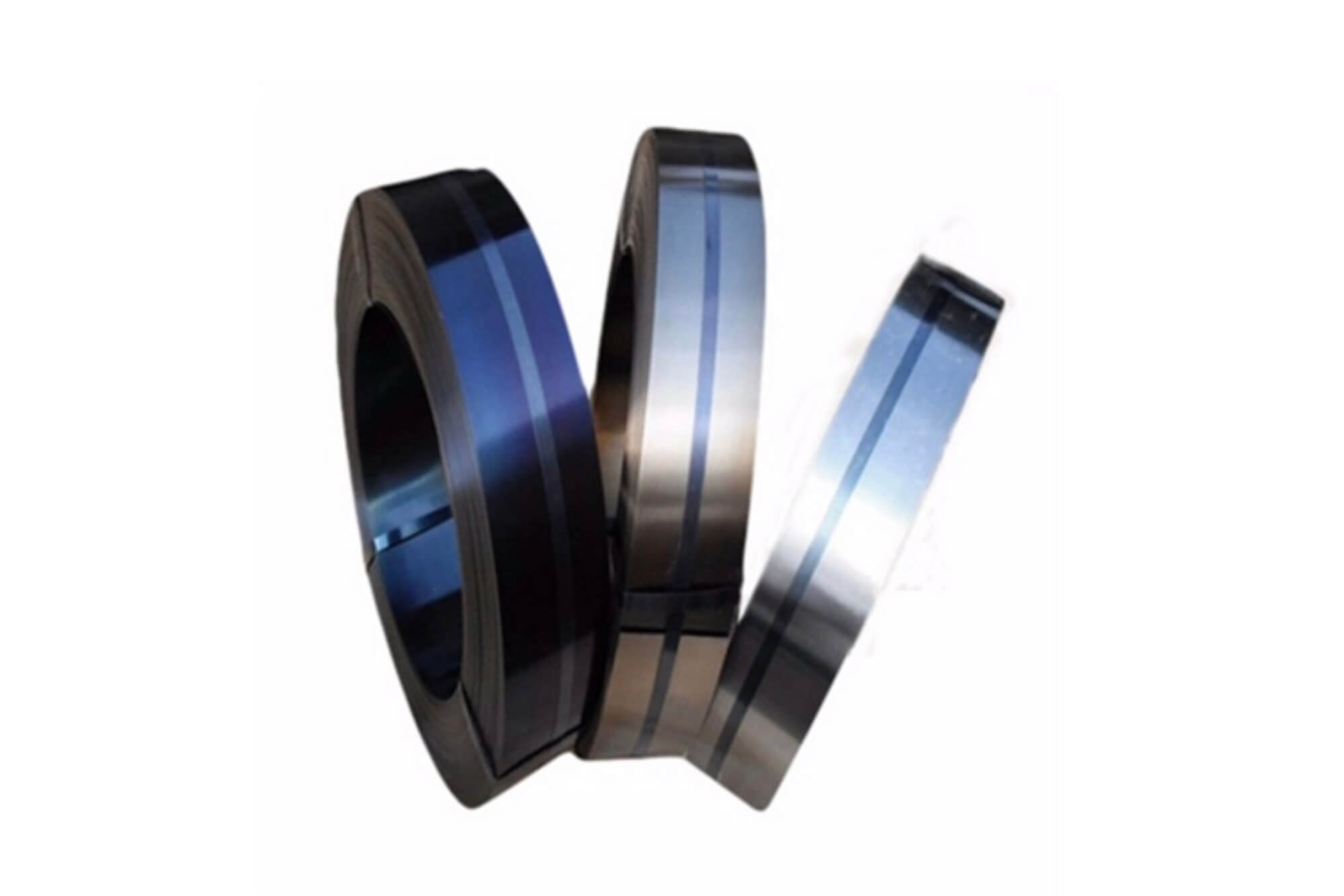

Overview of Spring Steel

Spring steel is a broad term for a group of steels known for their high yield strength, resilience, and fatigue resistance. These are the materials that “spring back” when bent or twisted, hence the name.

🔍 Common Types of Spring Steel:

Material Grade	Standard	Type	Properties	Typical Use Case
65Mn	GB/T	Carbon steel	High hardness, good wear resistance	General-purpose springs
1075 / 1095	AISI	High-carbon	High tensile strength, easy to heat treat	Blades, spring clips
5160	AISI	Alloy	Chrome alloy, very tough	Automotive leaf springs
SUS301	ASTM/JIS	Stainless Steel	Corrosion resistant, decent elasticity	Electronic spring contacts
EN42 / EN45	BS	Carbon/alloy	Good toughness and formability	Arched springs, leaf springs
SK5	JIS	Carbon steel	Similar to 1095, high precision	Saws, knives, precision spring parts

📌 Key Mechanical Properties:

Property	Range	Notes
Yield Strength	800 – 1600 MPa	High yield is critical for elasticity
Tensile Strength	1000 – 2000 MPa	High load-bearing capability
Hardness (after HT)	HRC 40 – 60	Depending on grade and quenching method
Elongation	5–20%	Limited ductility due to high strength
Modulus of Elasticity	~200 GPa	Similar to other steels

Spring steel is used everywhere from car suspensions to electrical connectors to precision surgical devices. It has the strength to take a hit and the memory to return to its shape. That’s why it’s so popular—and why it’s so difficult to machine if you don’t treat it right.

---

Can Spring Steel Be Machined?

Short answer? Yes.

But the longer answer is: it depends on the condition, the grade, and your tooling setup.

Spring steel can be machined, but it’s not as forgiving as mild steel or even standard tool steels. I’ve broken inserts, smoked drills, and scrapped parts when I treated it like a “normal” metal.

Here’s what I’ve learned through hands-on experience.

🛠️ Machinability Depends on Condition:

Spring steel typically comes in two states:

• Annealed (soft): Easier to machine, better for CNC
• Hardened (heat treated): Very hard, often requires grinding or EDM

When I get material in the annealed state, I machine the part close to final shape, then send it for heat treatment. If the material is already hardened, I skip conventional cutting and go straight to grinding or wire EDM.

---

⚠️ Machining Challenges with Spring Steel:

Challenge	Description
Tool wear	Even annealed spring steel is abrasive on cutters
Work hardening	If you pause or rub, the surface gets tougher
Vibration	The elastic nature of the metal can cause chatter
Heat buildup	Poor thermal conductivity = fast tool degradation
Deformation after HT	The part might warp post-machining and hardening

So yes, you can machine spring steel—but you need to know what you’re dealing with and plan accordingly.

---

Spring Steel Machining Methods Compared

There’s no one-size-fits-all way to machine spring steel. I’ve worked on parts where CNC milling made sense, and others where we had no choice but to use EDM or go back to stamping. In this section, I’ll compare all the common methods I’ve either used myself or seen others use on the shop floor.

📊 Machining Methods Comparison Table

Method	Machinability	Best For	Notes
CNC Milling/Turning	⚠️ Medium	Complex geometries in soft state	Use only in annealed condition; hard on tools
Wire EDM	✅ High	Hardened parts, tight tolerances	Best for detailed profiles, doesn’t generate stress
Laser Cutting	✅ Medium	Thin sheet profiles, fast protos	Heat-affected zone (HAZ) may need post-processing
Waterjet Cutting	✅ Medium	Heat-sensitive parts, prototyping	Cold cutting, no HAZ, slower than laser
Stamping	✅ Very High	Flat parts, high-volume jobs	Requires tooling, not suitable for low-volume custom work
Grinding	✅ High	Final tolerances, hardened steel	Essential for post-HT precision
Manual Machining	❌ Low	One-off parts	Tool wear too high, generally not worth the effort

---

🧰 1. CNC Milling and Turning

CNC is usually the first method that comes to mind for machinists. I’ve machined spring steel on a 3-axis mill and also on a CNC lathe, and here’s what I found:

• Only machine in annealed state. If you try to cut it post-heat-treatment, you’re asking for pain.
• Use carbide tools with proper coatings (TiAlN works well).
• Keep feeds conservative and don’t dwell. Dwelling causes work hardening.
• Spring steel can cause chatter due to its elasticity, so ensure rigid setups.

In my experience, machining 65Mn or 1075 in annealed form is manageable, but tool life is still a concern.

⚡ 2. Wire EDM

This is my favorite way to cut hardened spring steel.

• I’ve used EDM to cut hardened 1095 spring clips with micrometer-level accuracy.
• It doesn’t care if the steel is heat treated or not.
• No physical contact = no stress = no deformation.
• Downside? It’s slow and best suited to thin profiles and internal cutouts.

🔥 3. Laser Cutting

Laser cutting works well for thin sheets (<3mm) of spring steel. It’s fast, affordable, and widely available.

But:

• It creates a heat-affected zone (HAZ) that can harden the edges.
• Post-processing like grinding or annealing the edge might be needed.
• Can cause edge micro-cracking if not handled correctly.

If you’re prototyping spring clips or decorative parts, it’s often good enough.

💧 4. Waterjet Cutting

For thicker parts or when avoiding heat distortion, waterjet cutting is excellent. It doesn’t alter the steel’s properties and keeps the edges stress-free.

I once had a project with 6mm thick spring steel, and the laser shop refused the job. A waterjet cut it clean in under 20 minutes.

Drawbacks?

• Slower than laser.
• Kerf width is larger.
• Surface finish is rougher—might require secondary ops.

⚙️ 5. Stamping

If you’re making hundreds or thousands of spring parts, this is king. Stamping spring steel is fast, precise (with proper tooling), and extremely cost-effective.

• Tooling is expensive up front.
• Ideal for parts like clips, washers, shims, flat springs.

In mass production, I’ve seen stamping take part cost down by over 70% compared to CNC.

🧽 6. Grinding

When I want tight tolerances after heat treatment, grinding is essential. Especially for hardened spring steel with hardness above HRC 50, nothing else cuts clean.

• Surface grinding gives excellent flatness.
• Cylindrical grinding works for shafts or round parts.
• Tooling is expensive but pays off in high-precision environments.

❌ 7. Manual Machining

Just don’t.

Unless you’re making one part for testing and love sharpening drill bits, manual machining spring steel isn’t worth the time or tool wear.

Even with the best coolant and HSS tools, it’s an uphill battle. Trust me—I’ve tried. I ended up buying more inserts than I used.

🧩 Choosing the Right Method

Let me simplify it for you:

Part Type	Recommended Method
Hardened, small profile	Wire EDM
Thin flat parts, large qty	Stamping
Thick flat parts, proto	Waterjet or Laser
Small batches, custom shape	CNC in annealed condition
Post-HT final dimensions	Grinding

---

Recommended Tools and Speeds for Machining Spring Steel

When I first tried cutting spring steel, I underestimated just how tough it is on tools. Even in its annealed state, it behaves differently from mild or even tool steel. If you’re not using the right tooling, you’ll burn through inserts faster than you’d like.

So here’s everything I’ve learned—tested across CNC mills and lathes—with spring steel grades like 65Mn, 1075, and 1095.

🛠️ Best Tool Materials for Spring Stee

From experience, carbide is the baseline. HSS tools wear out too quickly, especially with spring steel’s abrasive nature and tendency to work harden.

Here’s a breakdown:

Tool Material	Suitability	Notes
HSS	❌ Poor	Wears out fast; causes heat buildup and hardening
Carbide (uncoated)	⚠️ Medium	Better than HSS, but needs cooling
Coated Carbide	✅ Great	TiAlN, AlTiN coatings help with heat and wear
CBN (Boron-based)	✅ Excellent	Best for hardened spring steel, but very expensive
Ceramic Tools	⚠️ Specialized	For high-speed dry cutting, not commonly used here

My go-to setup on a Haas CNC uses TiAlN-coated carbide end mills for most jobs. For longer runs, I switch to micro-grain carbide to extend tool life.

⚙️ Recommended Cutting Parameters

Now, let’s talk numbers. Here are ballpark figures I’ve had success with:

Grade	Condition	Tool Type	Speed (SFM)	Feed (IPT)	Depth of Cut (DOC)	Notes
65Mn	Annealed	Carbide End Mill	200–300	0.002–0.004	0.02–0.04 in	Use flood coolant; avoid dwell
1075	Annealed	Carbide Drill	100–150	0.002–0.003	0.05 in per pass	Peck drilling helps chip evacuation
1095	Hardened	CBN Insert	100–200	0.001–0.002	Light passes	Use for finish turning only
SUS301	Annealed	TiN-Coated Mill	150–250	0.002–0.005	0.03 in	Watch for work hardening
5160	Annealed	Carbide Rougher	250–400	0.005	0.05–0.08 in	Decent machinability in soft state

⚠️ NOTE: Always adjust based on machine rigidity, part geometry, and coolant setup. The above numbers are starting points.

💧 Coolant & Lubrication Tips

Spring steel tends to build heat fast and has low thermal conductivity, so keeping things cool is critical.

Here’s what’s worked well for me:

• Flood coolant for most CNC jobs
• Mist systems when you’re working with less rigid setups
• Peck drilling to avoid heat accumulation in deep holes
• Avoid dry cutting unless you’re running high-end ceramics or CBN on hard steel

I once skipped coolant during a profile cut on annealed 65Mn just to save cleanup time. Ended up melting the insert coating and dulling the edge in one pass. Lesson learned.

🔄 Roughing vs Finishing

Always plan your toolpaths accordingly:

• Roughing: Use high-feed, low-speed with tougher inserts
• Finishing: Lighter DOC and lower feed to maintain surface integrity

If you don’t finish cleanly, spring steel will bite back—you’ll see burrs, microcracks, and surface tension zones that may ruin your tolerances after heat treatment.

🧠 Personal Lessons Learned

• Spring steel isn’t impossible, but it punishes sloppy setups.
• I’ve had the best luck with rigid fixturing and shorter tools.
• When in doubt, go conservative on speeds and let the tool last longer.
• Don’t forget to stress-relieve parts before final finishing if tight tolerances matter.

---

Heat Treatment Considerations

If you’re working with spring steel, you’re going to deal with heat treatment at some point—there’s no getting around it. The properties we love spring steel for (its springiness, strength, and fatigue resistance) come from how it’s treated, not just what it’s made of.

But the big question is: Should I machine spring steel before or after heat treatment?
Here’s what I’ve found after doing it both ways—sometimes the right way, sometimes the hard way.

🔥 Why Heat Treatment Matters in Spring Steel

Spring steel gets its elasticity and strength from a combination of:

• Quenching – rapidly cooling the steel to trap the hard martensitic structure
• Tempering – reheating to a lower temperature to balance toughness and hardness

Here’s a breakdown of how heat treatment changes the material:

Condition	Hardness (HRC)	Machinability	Usage
Annealed	~20–30 HRC	✅ Easy to machine	Pre-machining state
Quenched (as-hardened)	~55–65 HRC	❌ Very difficult	High-strength, but brittle
Tempered	~45–55 HRC	⚠️ Very limited	Final use condition for springs

So if you’re cutting hardened spring steel and don’t have CBN or EDM, you’re in for a rough time.

📌 My Machining Strategy (Real-World Practice)

In 90% of cases, I machine spring steel in the annealed state first.

Here’s the general process I follow:

1. Rough machine in soft state.
2. Leave 0.1–0.2 mm allowance for finishing.
3. Send for heat treatment (quench and temper).
4. Finish grind or EDM cut critical surfaces.

If I try to skip step 4 and go straight to final machining after heat treatment, I usually regret it. The surface becomes hard, prone to cracking, and nearly impossible to finish cleanly with traditional tools.

🧪 Heat Treatment Process (Typical Flow)

Step	Temperature Range	Duration	Notes
Annealing	700–750°C	1–3 hrs	Softens material, stress relief
Quenching	830–880°C	Oil/water quench	Induces hardness, creates martensite
Tempering	400–550°C	1–2 hrs	Adjusts toughness/hardness balance

I usually request a two-stage tempering cycle from our heat treat vendor for parts under stress, especially for components like spring clips or clamps. It helps with dimensional stability.

⚠️ Things to Watch Out For

1. Warping after heat treat – I’ve had flat parts turn into potato chips after quenching. Use symmetric designs and leave stock for post-HT grinding.
2. Decarburization – Heat treatment can reduce surface hardness. Always remove 0.1 mm from the surface after HT if precision matters.
3. Internal stress – Especially on laser- or stamped parts. Always stress relieve before final grinding.

💡 Practical Tip:

If you’re sourcing spring steel that’s already hardened (some vendors sell it pre-hardened), plan to avoid machining entirely. Either:

• Use EDM or grinding
• Or redesign the part to be made from annealed stock and heat-treated later

🧩 Summary

Heat treatment is essential to unlock the true mechanical properties of spring steel, but it also limits your machining options. My advice is: machine soft, finish hard. That balance has saved me time, tooling, and scrap more times than I can count.

---

Surface Finishing Options for Spring Steel

Once the machining is done and the part has gone through heat treatment, your job isn’t finished. Spring steel parts usually operate under high stress and repetitive motion, so surface finish isn’t just about appearance—it directly affects performance and fatigue life.

Over the years, I’ve tested several surface treatments on spring steel parts. Some made a huge difference. Others… just added cost without real benefit.

Let’s break down what works, and when to use it.

🧽 Deburring & Edge Treatment

Spring steel is notorious for producing tough burrs during machining, especially in drilling and profiling operations. Left untreated, these burrs can lead to:

• Stress risers
• Premature cracking
• Assembly issues

Here’s how I handle deburring depending on the part and its function:

Deburring Method	Use Case	Notes
Manual deburring (hand tools)	Low-volume, large edges	Simple but labor-intensive
Tumbling / Vibratory	Small spring clips, batch parts	Efficient for high-volume small parts
Electrochemical deburring	Complex geometries	Expensive, but best for internal burrs
Laser deburring	Sheet metal parts post-cutting	Leaves minimal edge deformation
Chamfering in CNC code	Large, visible edges	Do it during machining if possible

Pro tip: Always deburr before heat treatment. The material is softer and easier to work with—and it avoids stress risers from being baked into the part.

🔩 Polishing & Grinding

Spring steel parts—especially those in high-cycle fatigue environments—benefit from surface refinement after machining.

I usually use one of the following depending on the required finish:

Method	Surface Roughness (Ra)	Best For
Surface grinding	0.2–0.8 µm	Hardened parts, tight flatness
Lapping	0.05–0.2 µm	Precision spring contacts
Belt polishing	0.8–1.6 µm	Decorative or wear-resistant parts
Shot blasting	~3–6 µm	Surface strengthening

On some aerospace parts I worked on, we polished the edges of spring steel to a mirror finish. It reduced micro-cracks and extended fatigue life dramatically.

🛡️ Surface Treatments and Coatings

Some people think of coatings as cosmetic. But with spring steel, surface protection can be critical—especially for parts exposed to corrosion, friction, or impact.

Here are common treatments I’ve applied or seen applied on various parts:

Coating/Treatment	Purpose	Notes
Black oxide	Anti-corrosion, low cost	Minimal dimensional change, widely used
Zinc plating	Stronger corrosion resistance	Slight dimensional growth, can reduce fatigue
Phosphate coating	Lubricity and corrosion resistance	Often used before assembly
PVD (TiN, TiAlN)	Wear and heat resistance	Great for tooling parts, expensive
Shot peening	Improve fatigue resistance	Induces compressive stress to reduce cracking
Passivation	For stainless spring steel (e.g., SUS301)	Improves corrosion resistance without coating

If you’re dealing with electronic contacts or small mechanical linkages, go for phosphate or black oxide. If you’re working in an outdoor or corrosive environment, zinc plating is usually worth the extra step.

⚠️ Watch Out For…

• Coating buildup can throw off tight tolerances. I once had a zinc-coated flat spring that wouldn’t fit its slot after finishing—0.02 mm too thick, and it cost us hours of rework.
• Some coatings, like phosphate, can absorb oil or moisture. Factor that into your assembly or storage plan.
• Always confirm post-treatment hardness if you’re doing heat + surface treatment. Some treatments involve elevated temps that could reduce spring tension if not done properly.

🧩 Summar

Surface finishing for spring steel isn’t optional—it’s part of the performance equation. Whether you’re reducing friction, fighting fatigue, or just avoiding rust, the right finishing method ensures your parts live up to their name: flexible, strong, and dependable.

---

Supplier & Material Selection Tips

I’ve learned the hard way that bad spring steel stock ruins good machining—and sometimes even your reputation. Once, I received a batch of so-called “65Mn” that behaved more like soft mild steel. Turned out it was mislabeled. The parts looked fine until they failed in a vibration test.

So if you’re working with spring steel, choosing the right supplier and verifying the material isn’t just smart—it’s essential.

📦 Sourcing Spring Steel: What to Look For

Start by knowing what you actually need. There are dozens of spring steel grades, but most projects only require a few:

Application Type	Recommended Grade	Notes
General-purpose springs	65Mn, 1075	Widely available, easy to machine in annealed state
High-strength components	1095, 5160	Good for wear and stress, but harder to machine
Corrosion resistance	SUS301, SUS304	Best for outdoor or humid environments
Automotive applications	EN45, 50CrV4	Excellent shock absorption and fatigue strength

Once you’ve settled on the grade, call suppliers directly. Don’t just trust the listing on a website. I always ask for:

• Heat treatment condition (annealed, hardened, tempered?)
• Material certification (mill test report, or MTR)
• Origin of steel (domestic vs. imported)
• Surface condition (scaleless, oiled, pickled?)

🧾 Certifications You Should Ask For

A reputable supplier should be able to provide an MTC (Mill Test Certificate) or similar, detailing:

Certificate Field	Why It Matters
Material Grade	Confirms alloy content
Hardness / HRC	Validates machinability or final usage
Yield/Tensile Strength	Essential for mechanical performance
Heat Treatment State	Tells you whether to machine or grind
Standards Compliance	ASTM, GB, JIS, etc.

I’ve worked with steel that had no certs, and even when it machined fine, I couldn’t use the parts in certified assemblies. Don’t skip this.

🛒 Recommended Sources (From Experience)

While availability varies by region, I’ve sourced good quality spring steel from:

• Thyssenkrupp – Reliable European grades, fully certified
• BaoSteel (China) – Especially good for 65Mn and 60Si2Mn
• McMaster-Carr – Great for small batches and prototyping in the U.S.
• Penn Stainless / Ulbrich – For stainless spring steels like SUS301/302
• Online Metals / Alro Steel – Small quantities, wide selection

If you’re buying in bulk or for long-term production, build a direct relationship with the mill or service center. You’ll get better pricing, faster answers, and fewer surprises.

❗ Watch Out For:

• Inconsistent flatness or thickness in hot-rolled stock.
• Imported spring steel without certificates—could be mislabeled or improperly treated.
• Too much surface scale can ruin small features in CNC parts.
• Fake “spring steel” sold on some marketplaces—usually mild steel with no real spring properties.

📋 Material Selection Checklist

✅ Checkpoint	Why It Matters
Correct grade	Mechanical properties
Condition (annealed or hardened)	Affects machinability
MTC / Certification	Quality assurance
Surface condition	Impacts finish and handling
Origin / Manufacturer	Traceability and long-term quality

🧩 Summary

If there’s one lesson I’d pass on here, it’s this: never treat spring steel like commodity steel.
Take the time to verify the specs, ask for certs, and understand the material state before you even cut your first chip. Good material makes everything downstream easier—bad material just multiplies problems.

---

Design for Machinability Tips

Even the best tooling, machine, and operator won’t save you from a part that’s poorly designed for spring steel. I’ve been there—machining ultra-thin spring arms with tight corners, only to watch them warp like potato chips after heat treatment.

So in this section, I’m sharing the rules I’ve developed to make spring steel parts that are actually machinable and stay in spec.

🧠 Design Principles That Make Spring Steel Easier to Machine

Design Tip	Why It Helps
Avoid sharp internal corners	Reduces stress risers and tool breakage
Use generous radii on edges	Prevents cracking during forming or hardening
Keep wall thickness consistent	Helps minimize distortion post heat treatment
Avoid deep thin slots	Hard to machine and tend to warp under stress
Design for fixturing	Add tabs, holes, or flat edges to help during CNC or EDM operations
Plan stock allowance for finishing	Especially important for grinding after heat treatment
Limit overly small features pre-HT	They might get damaged or deformed during quenching

When I design a spring steel part, I try to think two steps ahead—how am I going to fixture this? How will it behave after heat treat?

🖊️ Spring Steel CAD Design Dos & Don’ts

✅ Do This	❌ Avoid This
Use slots over blind holes	Thin blind holes often deform in HT
Maintain symmetry when possible	Prevents uneven stress during quenching
Add relief cuts to reduce stress	Sharp corners trap heat and crack
Chamfer or round exposed edges	Improves fatigue resistance
Add machining tabs if EDM is used	Makes it easier to hold tiny features

🔄 Tolerancing for Post-Machining Stability

Machining spring steel before heat treatment means you have to account for distortion. Even small parts can move significantly if they aren’t stress relieved.

Here’s what’s worked for me:

• Leave 0.1–0.2 mm for grinding on critical surfaces
• Use symmetric profiles to even out heat absorption
• Pre-bend or pre-crown parts if you know how they’ll move

For example, in one part I made—a small flat spring plate—I had to design it 0.15 mm concave, because I knew heat treatment would cause it to dome upward. Got it right on the second try.

🧰 EDM-Friendly Design Tips

If you plan to use wire EDM on spring steel (especially hardened stock), a few smart design tweaks will save hours:

• Add a start hole for the EDM wire
• Keep edges clean and open for flushing
• Design tabs for part removal or repositioning
• Make internal features large enough for the wire to enter (min ~0.2 mm gap)

I’ve done jobs where we couldn’t start the EDM cut because the customer’s drawing had no entry feature. We ended up drilling and re-fixturing everything. Not ideal.

🔧 Fixturing Considerations

You can design even the best part, but if you can’t hold it securely, it won’t machine well.

What I do:

• Design flat surfaces for clamping
• Add temporary “fixture tabs” to the part that can be ground off later
• For thin parts, I’ll use sacrificial backplates or adhesive setups to minimize vibration

🧩 Summary

Designing for machinability isn’t just about saving time in CAM or CNC—it’s about anticipating how spring steel behaves under stress. Keep geometry simple, allow for movement, and always design with post-processes in mind.

You’ll avoid warping, tooling issues, and rejected parts—and your machinist will probably thank you too.

---

Industry Use Cases

Over the years, I’ve worked on dozens of parts made from spring steel, across a wide range of industries. It’s one of those materials that shows up everywhere once you know what to look for—from the suspension system in your carto the metal clip inside your laptop.

Let me walk you through some real-world examples of how spring steel is used across different sectors, the challenges involved, and what I learned from making parts for each.

🚗 Automotive Industry

Spring steel is everywhere in cars, especially in:

• Leaf springs
• Suspension arms
• Retaining clips
• Clutch springs
• Brake hardware

Material: 5160, 65Mn, EN45
Why spring steel? High strength, fatigue resistance, and shock absorption.

I once worked on a batch of retaining clips for a truck’s drum brake system. The spec called for 65Mn, quenched and tempered. The hard part wasn’t cutting it—it was keeping the shape after heat treatment. We ended up redesigning the part slightly for better symmetry, and it reduced scrap by over 40%.

Key considerations:

• Parts must withstand constant vibration and pressure
• Surface treatments (like phosphate coating) are usually required for corrosion protection
• Tolerances can be tight, especially for fit into assemblies

💻 Electronics & Consumer Devices

In phones, laptops, and wearables, spring steel is used in:

• Battery contacts
• Button domes
• Ejector pins (like SIM card trays)
• Small latching or locking springs

Material: SUS301, SUS304 (for corrosion resistance and formability)
Typical thickness: 0.1–0.5 mm

I’ve done projects where we had to EDM-cut tiny spring arms from SUS301 sheets. The tolerances were brutal—±0.01 mm—and any burr could cause electrical interference. We polished those parts under a microscope.

Challenges:

• Ultra-thin materials require extremely stable fixturing
• EDM and laser cutting are preferred over mechanical machining
• Burrs must be eliminated completely

✈️ Aerospace & Defense

Aerospace loves spring steel for:

• Fastener locks
• Retaining rings
• Jet engine seals
• Precision springs in instruments

Material: Custom alloys, 1095, or even titanium spring metals

These are high-performance parts. I once saw a batch of spring retainers for an aircraft canopy system—machined from 1095, then EDM’d and shot-peened. They had to survive extreme G-forces and temperature shifts.

Key considerations:

• Fatigue life and surface finish are critical
• Every part gets serialized and traceable back to the material batch
• Usually paired with surface treatments like shot peening or PVD

🩺 Medical Devices

In surgical tools and implants, spring steel is used for:

• Tension clips
• Surgical scissors and blades
• Implant retention mechanisms

Material: 17-7PH, 420SS, sometimes heat-treated 316

Medical parts are often made in small batches, and I’ve machined tools that had zero room for surface defects. We used passivation and ultrasonic cleaning after finishing to remove any contaminants.

Challenges:

• Absolute cleanliness
• Dimensional repeatability for interchangeable tools
• Strict material documentation and compliance (ISO 13485, FDA)

🛠️ Tooling and Industrial Applications

Spring steel plays a role in:

• Snap-fit tooling
• Die springs
• Custom clamps and fixtures
• Measuring tools (like tape measures)

Material: 1075, 1095, 65Mn
Common processes: CNC + HT + grind

In my shop, we’ve made custom die return springs that cycle millions of times. Here, it’s all about balancing strength and cost—getting the right heat treatment makes or breaks the part’s life cycle.

📊 Spring Steel Industry Application Summary

Industry	Common Parts	Materials Used	Processing Notes
Automotive	Leaf springs, clips, brakes	65Mn, 5160, EN45	Needs good corrosion resistance + fatigue testing
Electronics	Contacts, ejectors, hinges	SUS301, SUS304	Burr-free finish, ultra-thin stock
Aerospace	Retainers, seals, locking devices	1095, custom alloys	High traceability and fatigue strength required
Medical	Clips, blades, tools	420SS, 17-7PH	Clean room processing and passivation required
Tooling	Dies, clamps, measuring tools	1075, 65Mn	Often requires grinding post heat treatment

🧩 Summary

Spring steel’s use cases span industries because of one simple trait: it returns to shape under stress.
Whether it’s holding a SIM card in place or suspending a 3-ton truck, the same principles apply—and so do the same machining, material, and finishing challenges.

The more I’ve worked with spring steel, the more I’ve appreciated how versatile—and demanding—it can be.

---

FAQ

Can You Machine Spring Steel? A Complete Guide for Engineers and Machinists

Over the years, I’ve been asked dozens of questions about machining spring steel—by engineers, by machinists, by purchasing teams. So here’s a no-fluff FAQ that gets to the point, based on real situations I’ve faced (and sometimes messed up).

1. Can spring steel be CNC machined?

Yes—but only reliably in its annealed (soft) state. Hardened spring steel is best handled using EDM or grinding.

2. What’s the best tool for machining spring steel?

TiAlN-coated carbide tools work best for CNC. For hardened parts, consider CBN inserts or go straight to wire EDM.

3. Should I heat treat spring steel before or after machining?

Machine first, heat treat later. Then perform final finishing (grinding or EDM) to meet tight tolerances.

4. Is 65Mn a good choice for spring applications?

Yes. It’s widely used, affordable, and performs well under fatigue. It’s also one of the more machinable spring steels in annealed form.

5. Can I drill and tap holes in spring steel?

Yes, but do it in the annealed state. Use coated carbide drills and taps, and keep pecking cycles short to avoid heat buildup.

6. What’s the main machining challenge with spring steel?

It work-hardens quickly, wears tools fast, and distorts easily during and after heat treatment.

7. What’s the ideal surface finish for spring steel parts?

For functional parts: Ra 0.4–0.8 µm. For high-stress components, go finer—polishing and shot peening can improve fatigue life.

8. Can laser cutting be used on spring steel?

Yes—for thin sheets (<3mm). Be mindful of the heat-affected zone (HAZ), which can harden the edges.

9. What’s the difference between 1075 and 1095 spring steel?

1095 has higher carbon content → harder, stronger, less ductile. Better for wear parts; 1075 is easier to form and machine.

10. How do I prevent tool wear when machining spring steel?

Use:

• High-quality carbide
• Proper feeds/speeds
• Flood coolant
  And avoid rubbing or dwelling—those will kill your tools.

11. What happens if I machine spring steel after it’s hardened?

Expect tool breakage, chatter, and poor finish. Unless you’re using EDM or grinding, it’s not worth the trouble.

12. What kind of spring steel is corrosion-resistant?

Use stainless spring steels like SUS301, SUS304, or 17-7PH. You can also apply zinc plating or black oxide for protection.

13. Can I use waterjet cutting for spring steel?

Yes—especially for thicker parts or when heat from lasers would be an issue. It’s slower but avoids heat distortion.

14. What tolerances should I expect post-heat treatment?

Plan for 0.1–0.2 mm of distortion. Leave finishing stock and grind or EDM afterward.

15. Can I use spring steel for 3D-printed hybrid parts?

Not directly. But spring steel can be combined with printed parts for clips, inserts, or flexible elements.

16. What’s the best way to deburr spring steel?

For small parts: tumbling or vibratory finishing. For tight-feature components: manual or laser deburring.

17. Should I passivate or coat spring steel?

For stainless grades, passivation is ideal. For carbon grades, go with black oxide, phosphate, or zinc depending on the environment.

---

Further Reading & Authoritative References

1. Overview of Factors Contributing to Steel Spring Performance and Failure
   This comprehensive study delves into the chemistry, heat treatment, residual stress, and fatigue failure of leaf and coil springs, offering insights into the complexities of spring steel performance.
   📄 ResearchGate
2. Tailoring the Microstructure Using Quenching and Partitioning Processing in a Commercial Mn-Si-Cr Spring Steel
   This research explores advanced heat treatment techniques to enhance the tensile properties of AISI 9260 spring steel, focusing on microstructural optimization.
   📄 ResearchGate
3. Simulations and Experiments in Punching Spring-Steel Devices
   This paper presents finite element simulations and experimental results on the blanking cycle of spring steel sheets, providing valuable data on cutting processes.
   📄 ScienceDirect
4. Engineering ToolBox – Material Properties
   A reliable resource offering detailed technical data and calculations for various materials, including spring steel, aiding engineers and designers in their applications.
   🌐 Engineering ToolBox
5. Compression Spring – An Overview
   This topic provides an overview of compression springs, discussing their design, applications, and the role of spring steel in their functionality.
   📄 ScienceDirect Topics
6. Laser-Assisted Shearing of Spring Steel: Reduction of Cutting Forces
   An insightful study on how laser-assisted shearing can reduce cutting forces in spring steel, enhancing the efficiency of manufacturing processes.
   📄 ResearchGate
